COMBILINE - DTS115 Series

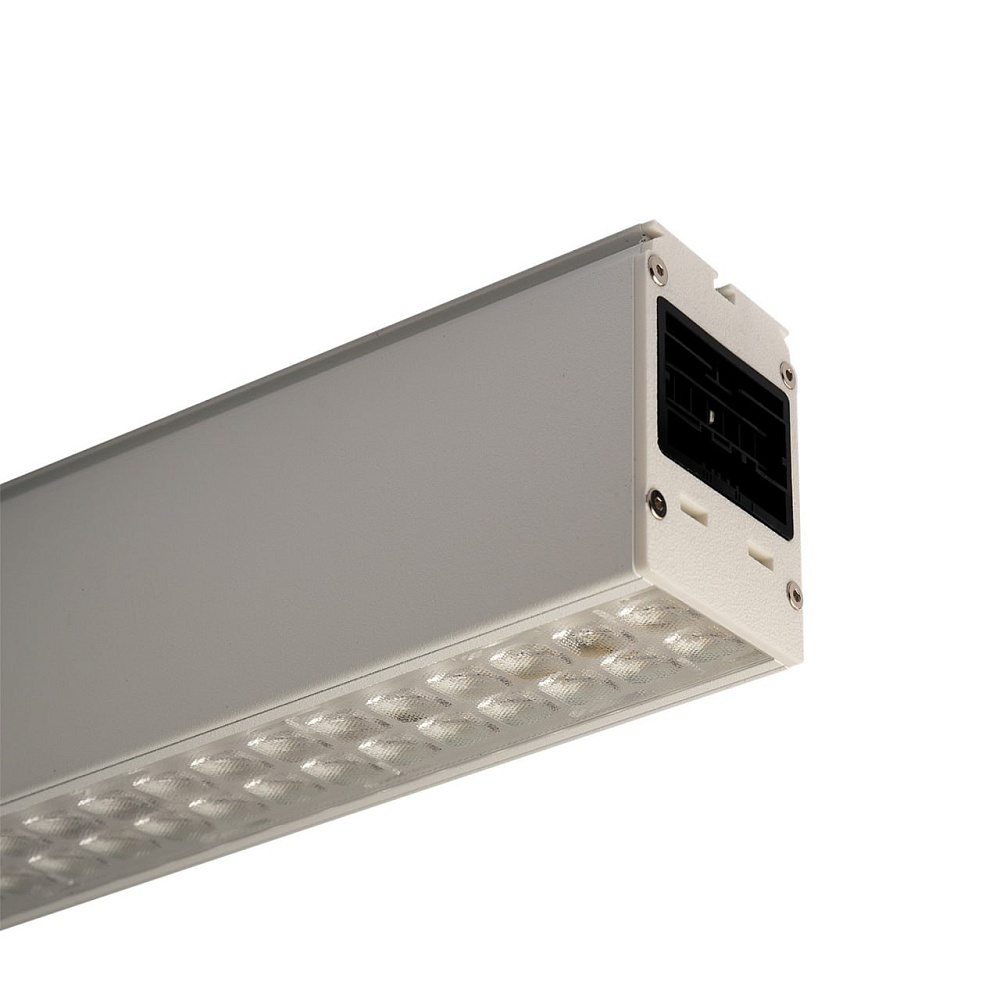

DTS115 COMBILINE is a modular continuous-row lighting system for warehouses, production facilities, retail areas and other large commercial and industrial spaces. A wide range of LEDIL optics, including narrow, wide, asymmetrical and low-glare distributions, allows the system to be configured for different applications, while luminaires can be easily repositioned or replaced without rebuilding the complete line. DTS115 offers high luminous efficacy and is available with different lumen packages, CCT and CRI options, as well as DALI, emergency lighting and sensor control. For dusty or demanding environments, it can also be supplied as a standalone IP65 luminaire.

40–83WPower

142–163lm/WEfficacy

4000 KCCT

Symmetric 30° / Symmetric 60° / Symmetric 90° / Symmetric 110° / Asymmetrical / Double asymmetricalBeam

IP40IP

IK05IK

Downloads

Available Variants

Filter:

72 variants

Article ⇅	Name / Variant ⇅	Power ⇅	Flux ⇅	Efficacy ⇅	CCT ⇅	CRI ⇅	Beam ⇅	IP ⇅	Control ⇅	Actions
700156121000	DTS115-140 6500lm 40W 840I S30 WH White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 30°	IP40	On/off	Product info
700156121010	DTS115-140 6500lm 40W 840I S60 WH White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 60°	IP40	On/off	Product info
700156121020	DTS115-140 6500lm 40W 840I S90 WH White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 90°	IP40	On/off	Product info
700156121230	DTS115-140 6500lm 40W 840I S110 WH White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 110°	IP40	On/off	Product info
700156121030	DTS115-140 6150lm 40W 840I AS WH White RAL 9010	40W	6150lm	154lm/W	4000 K	≥80	Asymmetrical	IP40	On/off	Product info
700156121040	DTS115-140 6150lm 40W 840I DAS WH White RAL 9010	40W	6150lm	154lm/W	4000 K	≥80	Double asymmetrical	IP40	On/off	Product info
700156121001	DTS115-140 6500lm 40W 840I S30 WH DALI White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 30°	IP40	DALI	Product info
700156121021	DTS115-140 6500lm 40W 840I S90 WH DALI White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 60°	IP40	DALI	Product info
700156121011	DTS115-140 6500lm 40W 840I S60 WH DALI White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 90°	IP40	DALI	Product info
700156121231	DTS115-140 6500lm 40W 840I S110 WH DALI White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 110°	IP40	DALI	Product info
700156121031	DTS115-140 6150lm 40W 840I AS WH DALI White RAL 9010	40W	6150lm	154lm/W	4000 K	≥80	Asymmetrical	IP40	DALI	Product info
700156121041	DTS115-140 6150lm 40W 840I DAS WH DALI White RAL 9010	40W	6150lm	154lm/W	4000 K	≥80	Double asymmetrical	IP40	DALI	Product info
700156121002	DTS115-140 6500lm 40W 840I S30 WH SR D4i White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 30°	IP40	DALI-2 / D4i	Product info
700156121022	DTS115-140 6500lm 40W 840I S90 WH SR D4i White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 60°	IP40	DALI-2 / D4i	Product info
700156121012	DTS115-140 6500lm 40W 840I S60 WH SR D4i White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 90°	IP40	DALI-2 / D4i	Product info
700156121232	DTS115-140 6500lm 40W 840I S110 WH D4i White RAL 9010	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 110°	IP40	DALI-2 / D4i	Product info
700156121032	DTS115-140 6150lm 40W 840I AS WH SR D4i White RAL 9010	40W	6150lm	154lm/W	4000 K	≥80	Asymmetrical	IP40	DALI-2 / D4i	Product info
700156121042	DTS115-140 6150lm 40W 840I DAS WH SR D4i White RAL 9010	40W	6150lm	154lm/W	4000 K	≥80	Double asymmetrical	IP40	DALI-2 / D4i	Product info
700156121050	DTS115-140 6500lm 40W 840I S30 GR Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 30°	IP40	On/off	Product info
700156121060	DTS115-140 6500lm 40W 840I S60 GR Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 60°	IP40	On/off	Product info
700156121070	DTS115-140 6500lm 40W 840I S90 GR Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 90°	IP40	On/off	Product info
700156121240	DTS115-140 6500lm 40W 840I S110 GR Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 110°	IP40	On/off	Product info
700156121080	DTS115-140 6150lm 40W 840I AS GR Dark grey RAL 7016	40W	6150lm	154lm/W	4000 K	≥80	Asymmetrical	IP40	On/off	Product info
700156121090	DTS115-140 6150lm 40W 840I DAS GR Dark grey RAL 7016	40W	6150lm	154lm/W	4000 K	≥80	Double asymmetrical	IP40	On/off	Product info
700156121051	DTS115-140 6500lm 40W 840I S30 GR DALI Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 30°	IP40	DALI	Product info
700156121061	DTS115-140 6500lm 40W 840I S60 GR DALI Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 60°	IP40	DALI	Product info
700156121071	DTS115-140 6500lm 40W 840I S90 GR DALI Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 90°	IP40	DALI	Product info
700156121241	DTS115-140 6500lm 40W 840I S110 GR DALI Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 110°	IP40	DALI	Product info
700156121081	DTS115-140 6150lm 40W 840I AS GR DALI Dark grey RAL 7016	40W	6150lm	154lm/W	4000 K	≥80	Asymmetrical	IP40	DALI	Product info
700156121091	DTS115-140 6150lm 40W 840I DAS GR DALI Dark grey RAL 7016	40W	6150lm	154lm/W	4000 K	≥80	Double asymmetrical	IP40	DALI	Product info
700156121052	DTS115-140 6500lm 40W 840I S30 GR SR D4i Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 30°	IP40	DALI-2 / D4i	Product info
700156121062	DTS115-140 6500lm 40W 840I S60 GR SR D4i Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 60°	IP40	DALI-2 / D4i	Product info
700156121072	DTS115-140 6500lm 40W 840I S90 GR SR D4i Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 90°	IP40	DALI-2 / D4i	Product info
700156121242	DTS115-140 6500lm 40W 840I S110 GR D4i Dark grey RAL 7016	40W	6500lm	163lm/W	4000 K	≥80	Symmetric 110°	IP40	DALI-2 / D4i	Product info
700156121082	DTS115-140 6150lm 40W 840I AS GR SR D4i Dark grey RAL 7016	40W	6150lm	154lm/W	4000 K	≥80	Asymmetrical	IP40	DALI-2 / D4i	Product info
700156121092	DTS115-140 6150lm 40W 840I DAS GR SR D4i Dark grey RAL 7016	40W	6150lm	154lm/W	4000 K	≥80	Double asymmetrical	IP40	DALI-2 / D4i	Product info
700156121100	DTS115-140 12500lm 83W 840I S30 WH White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 30°	IP40	On/off	Product info
700156121110	DTS115-140 12500lm 83W 840I S60 WH White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 60°	IP40	On/off	Product info
700156121120	DTS115-140 12500lm 83W 840I S90 WH White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 90°	IP40	On/off	Product info
700156121250	DTS115-140 12500lm 83W 840I S110 WH White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 110°	IP40	On/off	Product info
700156121130	DTS115-140 11800lm 83W 840I AS WH White RAL 9010	83W	11800lm	142lm/W	4000 K	≥80	Asymmetrical	IP40	On/off	Product info
700156121140	DTS115-140 11800lm 83W 840I DAS WH White RAL 9010	83W	11800lm	142lm/W	4000 K	≥80	Double asymmetrical	IP40	On/off	Product info
700156121101	DTS115-140 12500lm 83W 840I S30 WH DALI White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 30°	IP40	DALI	Product info
700156121111	DTS115-140 12500lm 83W 840I S60 WH DALI White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 60°	IP40	DALI	Product info
700156121121	DTS115-140 12500lm 83W 840I S90 WH DALI White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 90°	IP40	DALI	Product info
700156121251	DTS115-140 12500lm 83W 840I S110 WH DALI White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 110°	IP40	DALI	Product info
700156121131	DTS115-140 11800lm 83W 840I AS WH DALI White RAL 9010	83W	11800lm	142lm/W	4000 K	≥80	Asymmetrical	IP40	DALI	Product info
700156121141	DTS115-140 11800lm 83W 840I DAS WH DALI White RAL 9010	83W	11800lm	142lm/W	4000 K	≥80	Double asymmetrical	IP40	DALI	Product info
700156121102	DTS115-140 12500lm 83W 840I S30 WH SR D4i White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 30°	IP40	DALI-2 / D4i	Product info
700156121112	DTS115-140 12500lm 83W 840I S60 WH SR D4i White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 60°	IP40	DALI-2 / D4i	Product info
700156121122	DTS115-140 12500lm 83W 840I S90 WH SR D4i White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 90°	IP40	DALI-2 / D4i	Product info
700156121252	DTS115-140 12500lm 83W 840I S110 WH D4i White RAL 9010	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 110°	IP40	DALI-2 / D4i	Product info
700156121132	DTS115-140 11800lm 83W 840I AS WH SR D4i White RAL 9010	83W	11800lm	142lm/W	4000 K	≥80	Asymmetrical	IP40	DALI-2 / D4i	Product info
700156121142	DTS115-140 11800lm 83W 840I DAS WH SR D4i White RAL 9010	83W	11800lm	142lm/W	4000 K	≥80	Double asymmetrical	IP40	DALI-2 / D4i	Product info
700156121150	DTS115-140 12500lm 83W 840I S30 GR Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 30°	IP40	On/off	Product info
700156121160	DTS115-140 12500lm 83W 840I S60 GR Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 60°	IP40	On/off	Product info
700156121170	DTS115-140 12500lm 83W 840I S90 GR Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 90°	IP40	On/off	Product info
700156121260	DTS115-140 12500lm 83W 840I S110 GR Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 110°	IP40	On/off	Product info
700156121180	DTS115-140 11800lm 83W 840I AS GR Dark grey RAL 7016	83W	11800lm	142lm/W	4000 K	≥80	Asymmetrical	IP40	On/off	Product info
700156121190	DTS115-140 11800lm 83W 840I DAS GR Dark grey RAL 7016	83W	11800lm	142lm/W	4000 K	≥80	Double asymmetrical	IP40	On/off	Product info
700156121151	DTS115-140 12500lm 83W 840I S30 GR DALI Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 30°	IP40	DALI	Product info
700156121161	DTS115-140 12500lm 83W 840I S60 GR DALI Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 60°	IP40	DALI	Product info
700156121171	DTS115-140 12500lm 83W 840I S90 GR DALI Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 90°	IP40	DALI	Product info
700156121261	DTS115-140 12500lm 83W 840I S110 GR DALI Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 110°	IP40	DALI	Product info
700156121181	DTS115-140 11800lm 83W 840I AS GR DALI Dark grey RAL 7016	83W	11800lm	142lm/W	4000 K	≥80	Asymmetrical	IP40	DALI	Product info
700156121191	DTS115-140 11800lm 83W 840I DAS GR DALI Dark grey RAL 7016	83W	11800lm	142lm/W	4000 K	≥80	Double asymmetrical	IP40	DALI	Product info
700156121152	DTS115-140 12500lm 83W 840I S30 GR SR D4i Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 30°	IP40	DALI-2 / D4i	Product info
700156121162	DTS115-140 12500lm 83W 840I S60 GR SR D4i Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 60°	IP40	DALI-2 / D4i	Product info
700156121172	DTS115-140 12500lm 83W 840I S90 GR SR D4i Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 90°	IP40	DALI-2 / D4i	Product info
700156121262	DTS115-140 12500lm 83W 840I S110 GR D4i Dark grey RAL 7016	83W	12500lm	151lm/W	4000 K	≥80	Symmetric 110°	IP40	DALI-2 / D4i	Product info
700156121182	DTS115-140 11800lm 83W 840I AS GR SR D4i Dark grey RAL 7016	83W	11800lm	142lm/W	4000 K	≥80	Asymmetrical	IP40	DALI-2 / D4i	Product info
700156121192	DTS115-140 11800lm 83W 840I DAS GR SR D4i Dark grey RAL 7016	83W	11800lm	142lm/W	4000 K	≥80	Double asymmetrical	IP40	DALI-2 / D4i	Product info
