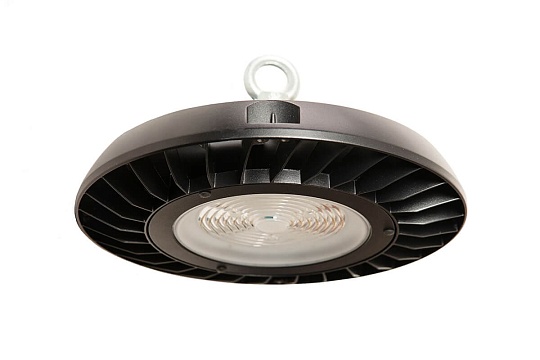

DCF 324 Ecoline Highbay GEN2

PRODUCT INFORMATION

FUNCTIONALITY

• Driver:
  Driver Philips Xitanium
• Initial LED luminaire efficacy:
  130 Lm/W

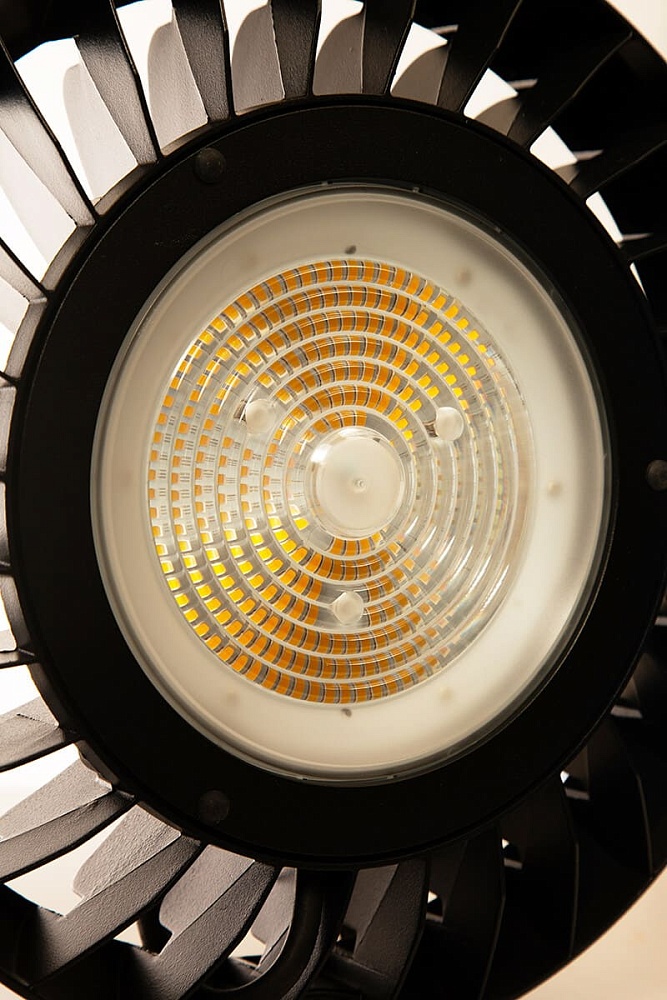

• Diffuser:
  PMMA group lens.
• Light Color:
  4000K as standard 5700, 6500K on request
• Color Rendering Index (CRI):
  > 80
• Light Output Range:
  Lm:15000Lm, 20000Lm, 25000Lm, depends on type
• Optical types:
  Symmetrical 60dgr or 90dgr
• Power supply:
  Driver Philips Xitanium
• Light source:
  LED module Philips Fortimo

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0.9
• Electrical isolation class IEC:
  Class I
• Input Frequency:
  50-60 Hz
• Power factor nominal:
  0,95
• Input voltage:
  220 – 240 V
• Power consumption:
  110 – 190 W depending on type

MECHANICAL PARAMETERS

• Ingress protection:
  IP65
• Impact resistance:
  IK07
• Body material:
  Housing: high-pressure, die-cast aluminium
• Color:
  Black

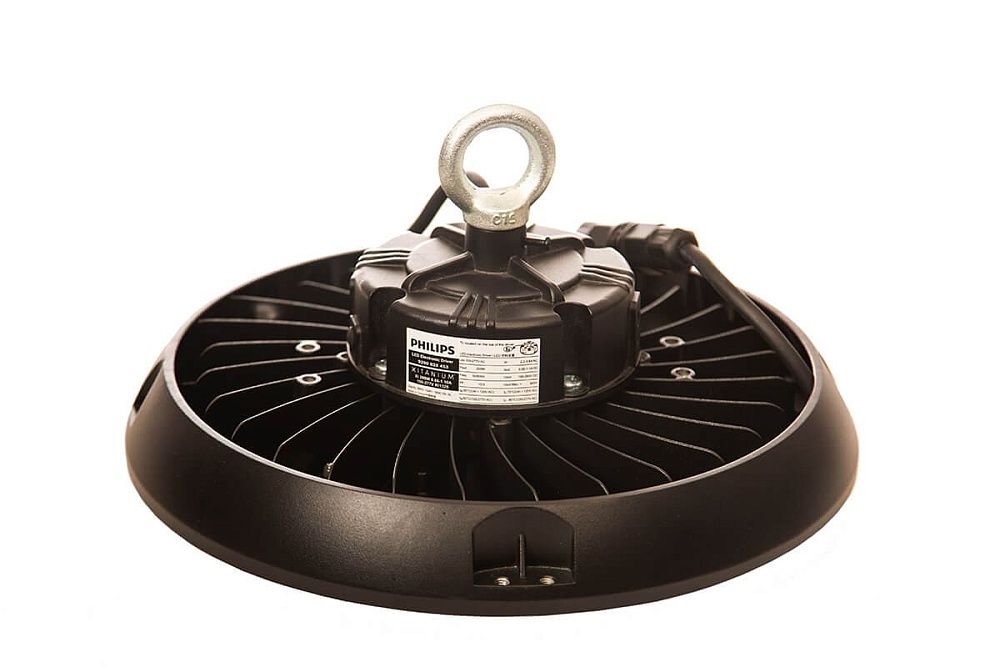

• Installation:
  Suspending on hook or with ropes

OVERTIME PERFORMANCE

• Initial system efficacy:
  132-136 Lm/W
• Median useful life of LED source:
  L80-L90 B50(B20) 50000hrs (depends on type)

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  -15 to +40 °C
• Average ambient temperature:
  n/a

ACCSESORIES

• EOC	Description
  30112003	Hanging loop
  30112004	Rope for suspension
  30112005	Protective grid 324
  30112006	Protective grid 323

GENERAL INFORMATION

• Flammability:
  n/a
• Warranty period:
  5 years
• CE mark:
  CE marked
• ROHS mark:
  ROHS complaint
• Application:
  • Industrial halls
  • Warehouses
  • Exhibition halls
  • Food production area
  • Supermarkets
