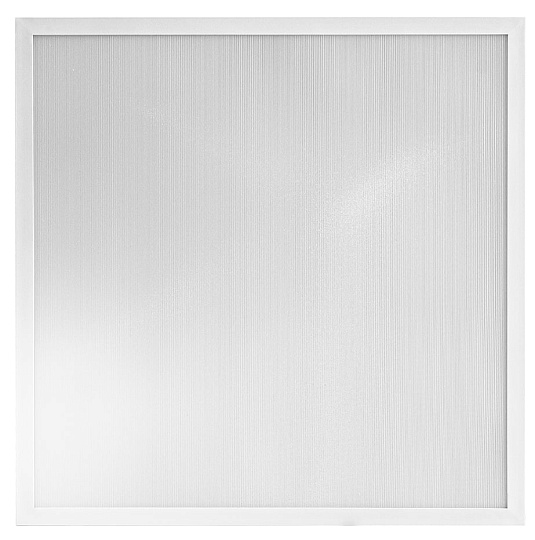

DPL098 Back-Lit Office compliant UGR<19

PRODUCT INFORMATION

TYPE

• Product type:
  DPL 098

FUNCTIONALITY

• Driver:
  Philips Certadrive or Xitanium included.
• Optical cover:
  • Microprismatic diffuser as standard, Opal on request
  • PS diffuser as a standard, PMMA on request.
• Color Rendering Index (CRI):
  > 80
• Color temperature (CCT):
  3000K,4000K as standard, 6500K on request
• Light source:
  LED module
• Ceiling type:
  Exposed T-bar ceiling
• Managing:
  Fixed output as standard, DALI optional
• Office application:
  Office compliant, UGR<19 as a standard.

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0.92
• Electrical isolation class IEC:
  SELV
• Input Frequency:
  50-60Hz
• Power factor nominal:
  0,97
• Input voltage:
  210-230V
• Initial Light output:
  3300-4500Lm depending on the type
• Initial system efficacy:
  120-130Lm/W Depending on the type
• Power consumption:
  27-35 W
• Number of products on MCB (16A type B):
  Max 30

MECHANICAL PARAMETERS

• Ingress protection:
  IP40/IP20
• Impact resistance:
  IK05
• Installation:
  Individual: lay-in in exposed ceiling grids; suspended

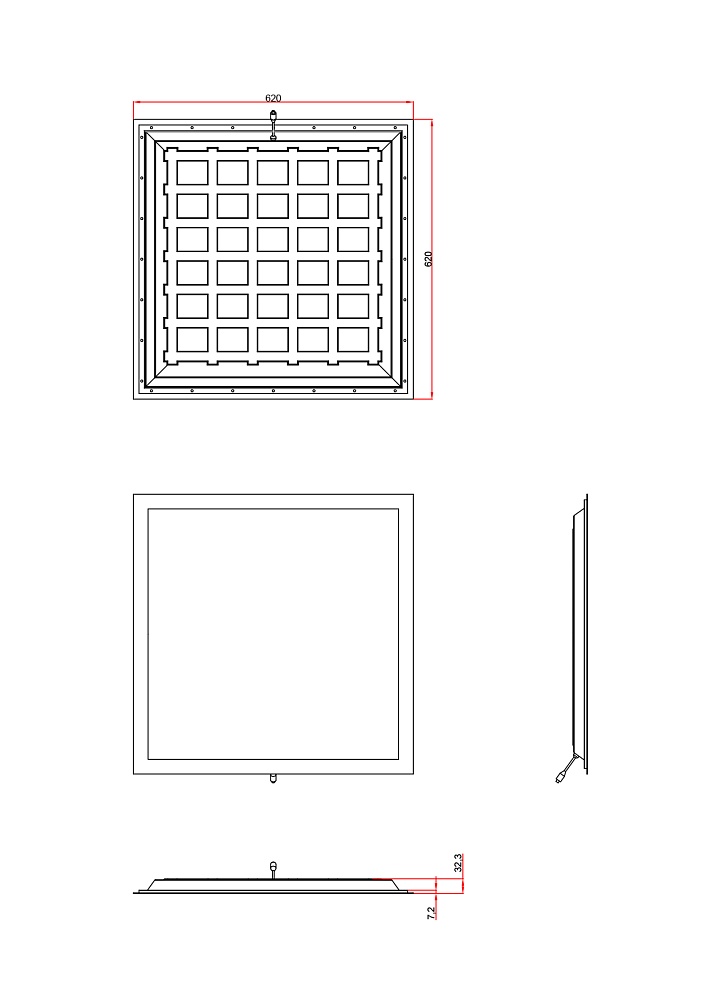

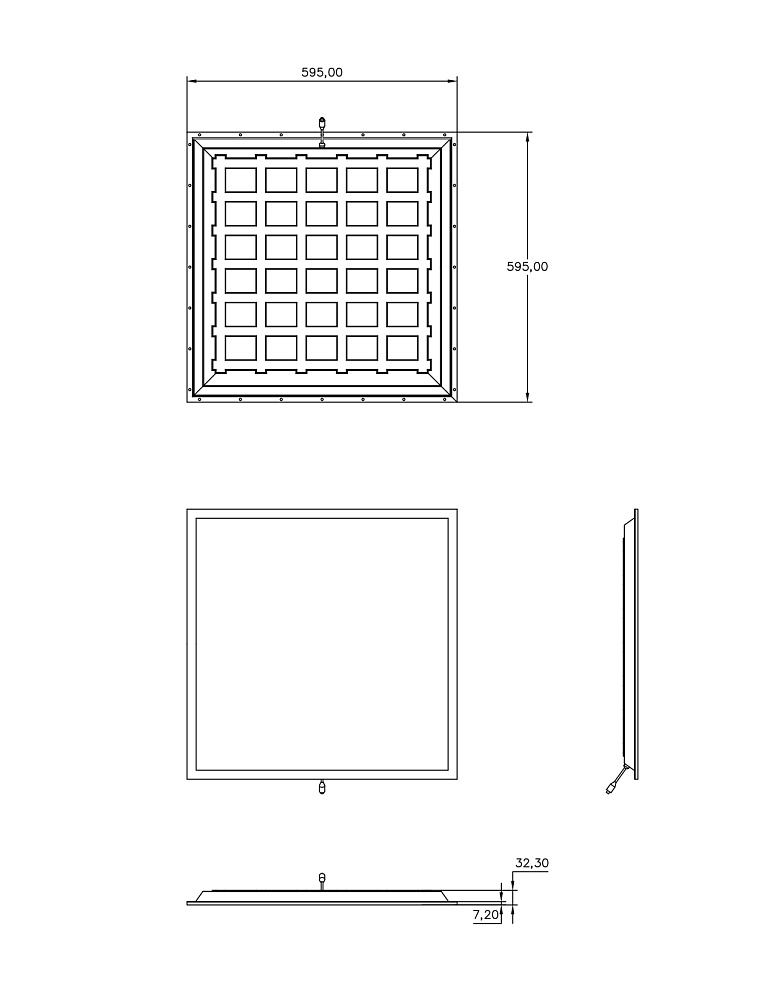

• Dimensions:
  595x595x30 or 620x620x30
• Net weight piece:
  1,6 kg

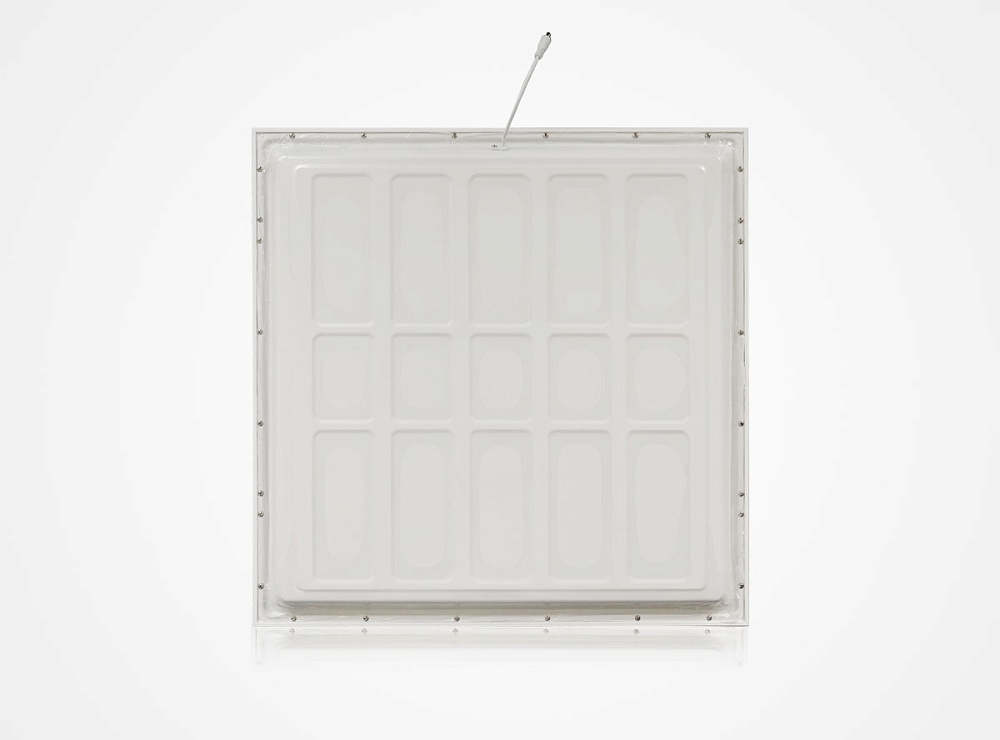

• Housing material:
  Aluminum profile, steel cover,diffuser PS or PMMA, depending on the type
• Color:
  White

OVERTIME PERFORMANCE

• Driver service life time @10% failures:
  50 000 hours
• Luminous flux system tolerance:
  +/- 5%
• Median useful life of LED source:
  L80....L90 @ 50000 work hours
• Power consumption tolerance:
  +/- 5%

ORDER INFORMATION

• Packaging carton:
  • Inner box - 1pcs
  • Outer box - 6 pcs
• Packaging pallet:
  72 pcs
• Brutto weight per pcs:
  2kg

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  -10°C to +30 °C

GENERAL INFORMATION

• Flammability:
  F [For mounting on normally flammable surfaces]
• Warranty period:
  5 years
• CE mark:
  CE mark
• ROHS mark:
  ROHS mark
• Application:
  • Offices
  • Open-plan
  • Meeting rooms
  • Cell offices
  • Circulation areas
  • Healthcare
  • Hospitality
