CLEARSPOT DTP 107

PRODUCT INFORMATION

GENERAL INFORMATION

• Product type:
  DTP 107 HE
• Initial LED luminaire efficacy:
  Up to 165lm/W
• Rotation:
  0-90 degrees tilt and 0-355 degrees pan bandwidth
• Power supply:
  Track Adaptor Driver included
• Light source:
  Philips COB LED module

ELECTRICAL PARAMETERS

• Driver type:
  Track Adaptor Driver
• Protection class IEC:
  Class II
• Power factor nominal:
  0,95
• Input voltage:
  220-240V
• Power consumption:
  10-31W
• Power consumption tolerance:
  +/- 5%

MECHANICAL PARAMETERS

• Ingress protection:
  IP20
• Impact resistance:
  IK02
• Lens material:
  PMMA
• Body material:
  Due-casted Aluminium
• Color:
  White or Black
• Installation:
  Track mounted

LIGHTING PERFORMANCE

• CCT:
  2700,3000K,3500K,4000K
• Color rendering index, CRI:
  > 90
• Initial color shift, SDCM:
  < 3
• LOR:
  up to 0,91
• Luminaire lumen output range, lm:
  1450-4480 lm depending on type
• Photobiological safety:
  RG1

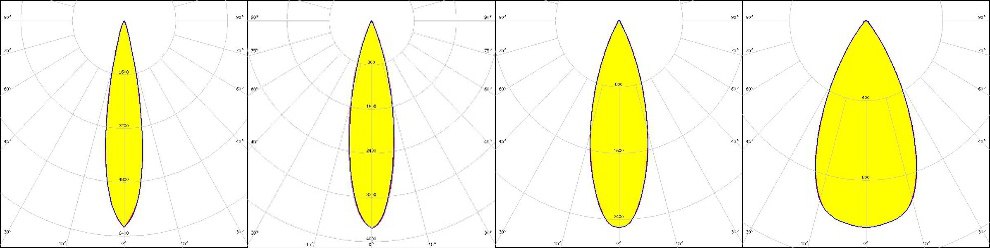

• Light distribution:
  15, 26, 36, 60 dgr
•

CONTROLS AND DIMMING

• Control interface:
  Corridor Mode, DALI, Touch and Dim
• Condition:
  DALI parts: 101, 102, 207, 251, 252, 253
• Dimming range:
  1-100%
• Casambi ecosystem:
  compatible

OVERTIME PERFORMANCE

• Median useful life of LED source:
  L80B10, 110 000 Hours

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  0 to +35 °C

WARRANTY AND APPLICATION

• Warranty period:
  5 years
• Application:
  • Shops
  • Show rooms
  • Meeting rooms
  • Circulation areas
  • Hospitality
