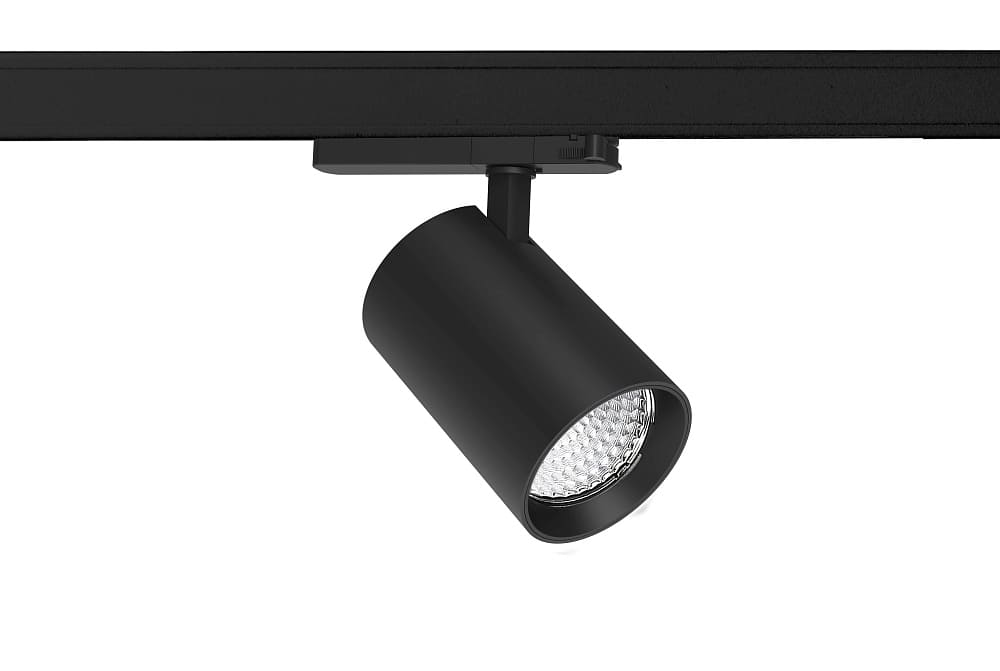

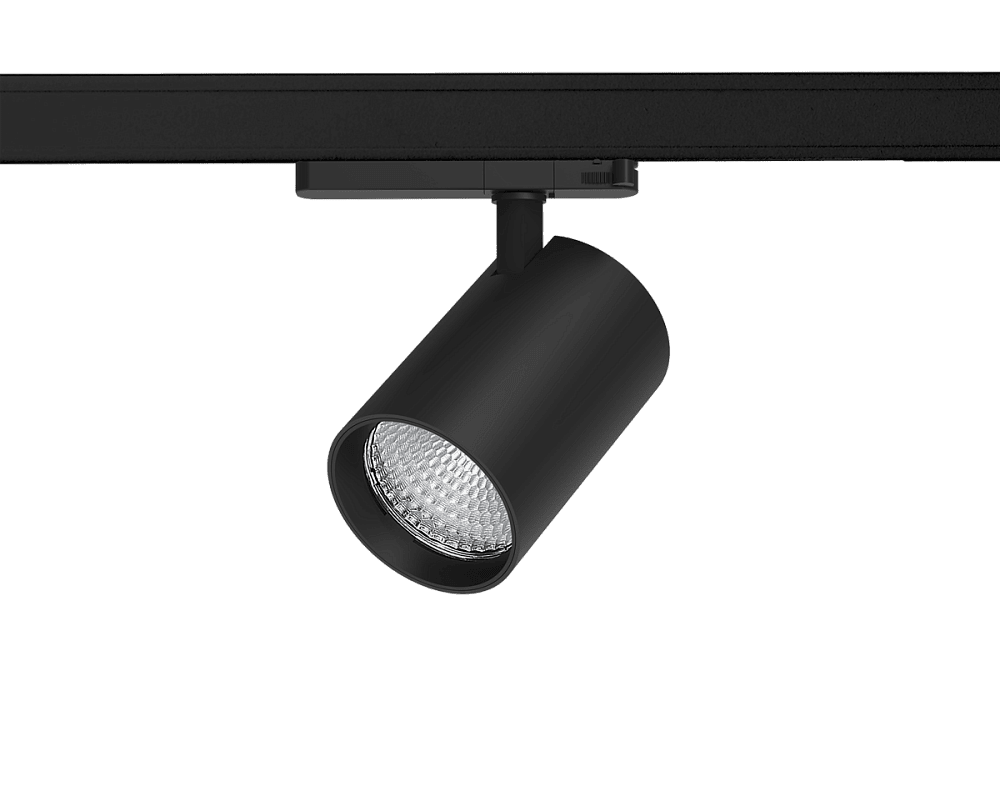

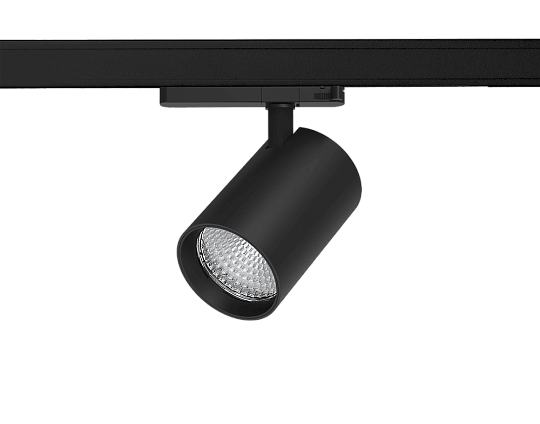

DTP 105

PRODUCT INFORMATION

TYPE

• Product type:
  DTP 105

FUNCTIONALITY

• Managing system:
  DALI2, CASAMBI
• Initial LED luminaire efficacy:
  Up to 119lm/W
• Color Rendering Index (CRI):
  90 as a standard
• Power supply:
  Track Adaptor Driver included
• Light source:
  Philips or Cree COB LED module

ELECTRICAL PARAMETERS

• Driver type:
  Track Adaptor Driver
• Electrical isolation class IEC:
  Class II
• Power factor nominal:
  0,95
• Input voltage:
  220-240V
• Power consumption:
  34,41W depends on type

MECHANICAL PARAMETERS

• Ingress protection:
  IP20
• Impact resistance:
  IK02
• Color:
  White or Black
• Installation:
  Track mounted

LIGHTING PERFORMANCE

• CCT:
  3000K, 3500K, 4000K
• Color rendering index, CRI:
  > 90
• Initial color shift, SDCM:
  < 3
• Light source:
  COB modules
• Luminaire lumen output range, lm:
  3850-4700 lm depending on type
• Photobiological safety:
  RG1
• Type of optic:
  PC, Aluminium coated
• Light distribution:
  15, 36, 60 dgr

OVERTIME PERFORMANCE

• Median useful life of LED source:
  L80B50, 50 000 Hours
• Power consumption tolerance:
  +/- 5%

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  0 to +35 °C

GENERAL INFORMATION

• Warranty period:
  5 years

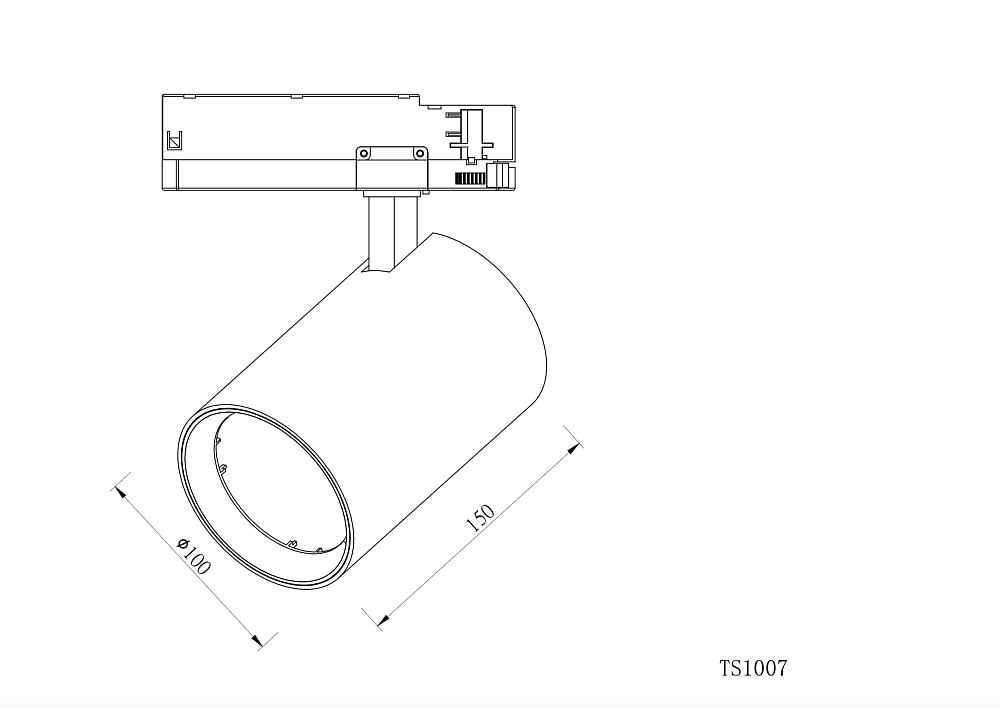

• Dimensions:

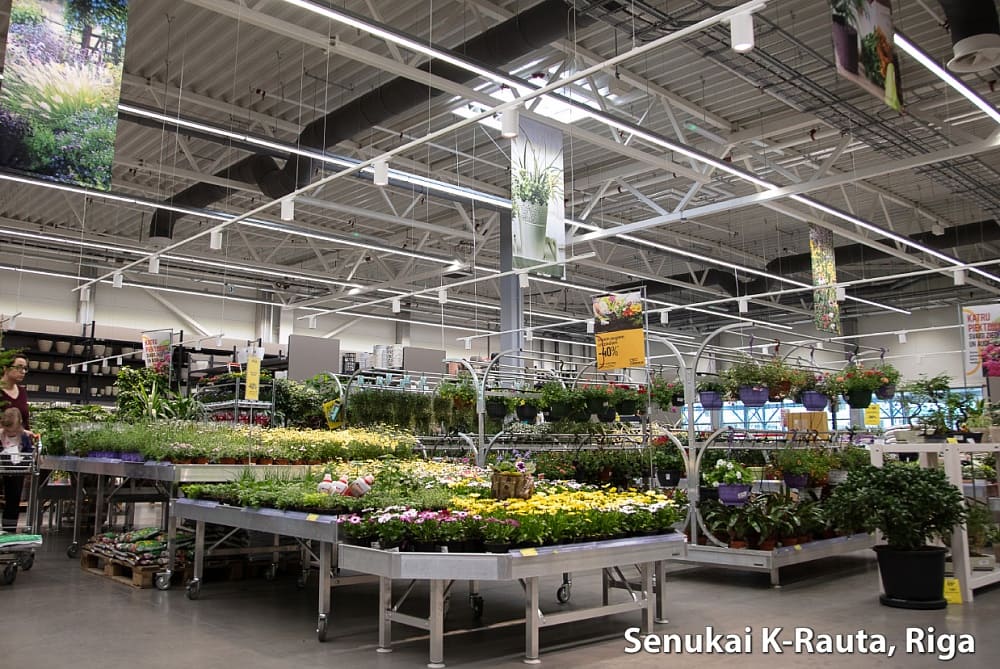

• Application:
  • Shops
  • Show rooms
  • Meeting rooms
  • Circulation areas
  • Hospitality
• Packaging:
  • Inner box – 1 pcs
  • Outer box – 16 pcs
