SURFACE MOUNTED

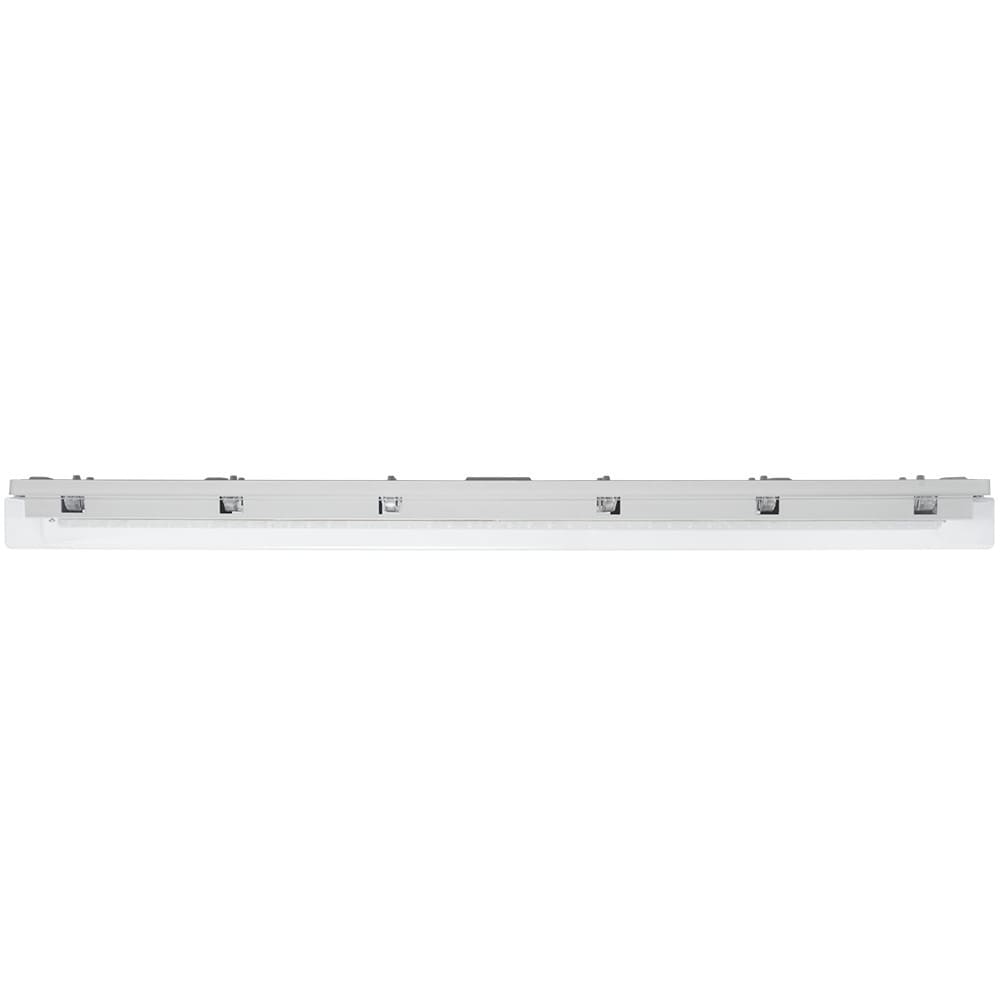

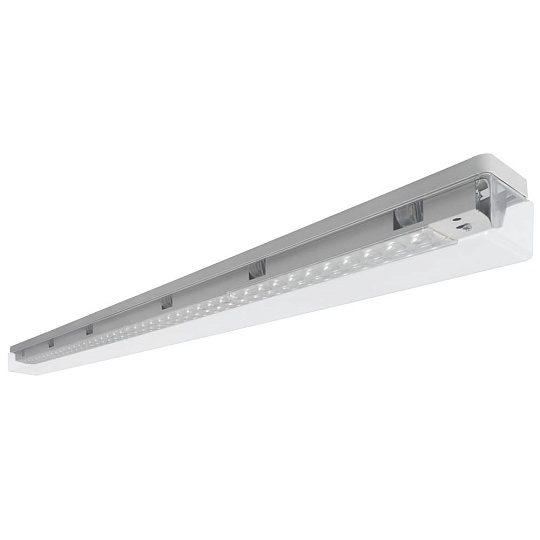

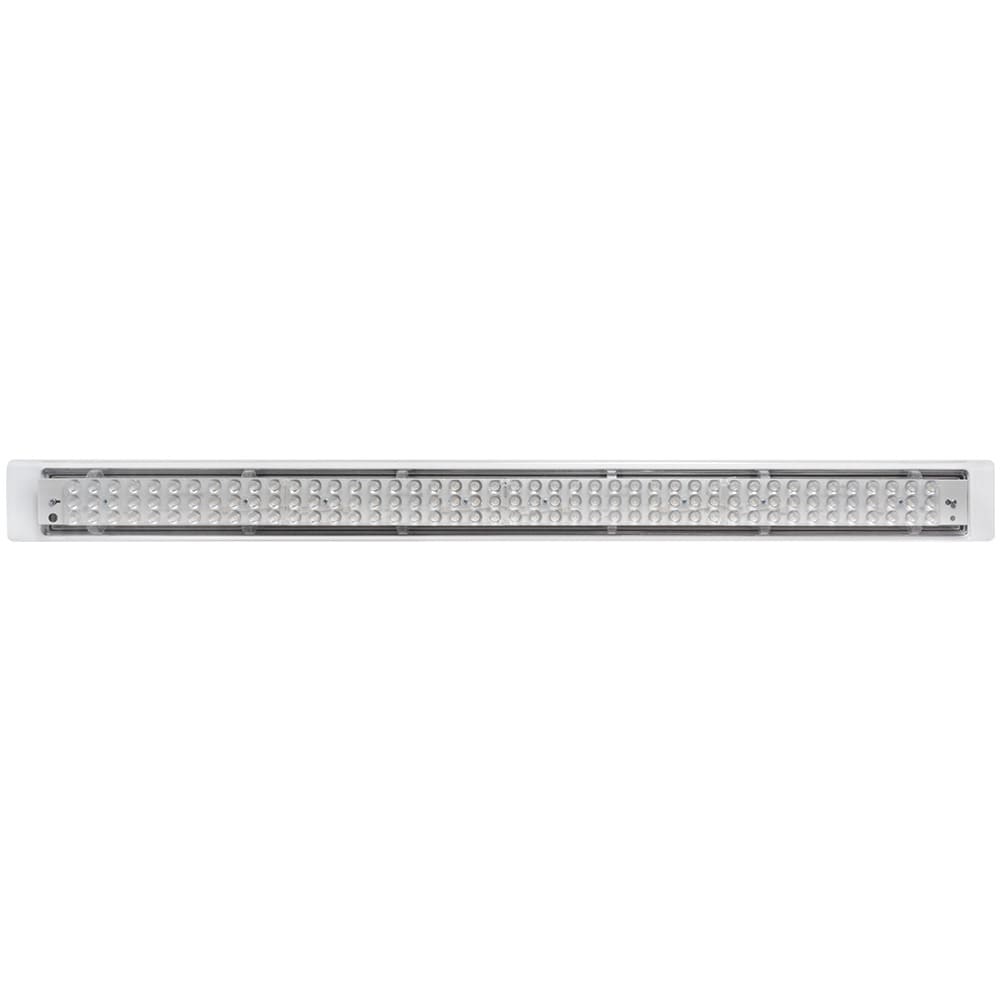

DWL-LR

DWL-LR

Benefits:

Up to 50% energy savings compared with TL-D
Reliable LED technology – maintenance-free
Direct replacement for conventional waterproof and wall mounted luminaires in terms of light performance
Universal solution covering various application requirements

Downloads:

Code	Name	Light output, lm	Power, W	Efficacy lm/W	IP	Light distribution
700151492140	DWL-LR_120 8000lm 49W I 840 IP54 PMMA DASB	8000	49	163	54	Double assymetric
700151492130	DWL-LR_120 8000lm 49W I 840 IP54 PMMA ASB	8000	49	163	54	assymetric
700151492120	DWL-LR_120 8000lm 49W I 840 IP54 PMMA WB	8000	49	163	54	symmetric 90 dgr
700151492110	DWL-LR_120 8000lm 49W I 840 IP54 PMMA MB	8000	49	163	54	symmetric 60 dgr
700151492100	DWL-LR_120 8000lm 49W I 840 IP54 PMMA NB	8000	49	163	54	symmetric 30 dgr
700151492240	DWL-LR_150 10000lm 60W I 840 IP54 PMMA DASB	10000	60	167	54	Double assymetric
700151492230	DWL-LR_150 10000lm 60W I 840 IP54 PMMA ASB	10000	60	167	54	assymetric
700151492220	DWL-LR_150 10000lm 60W I 840 IP54 PMMA WB	10000	60	167	54	symmetric 90 dgr
700151492210	DWL-LR_150 10000lm 60W I 840 IP54 PMMA MB	10000	60	167	54	symmetric 60 dgr
700151492200	DWL-LR_150 10000lm 60W I 840 IP54 PMMA NB	10000	60	167	54	symmetric 30 dgr
700151492340	DWL-LR_150 12500lm 77W I 840 IP54 PMMA DASB	12500	77	162	54	Double assymetric
700151492330	DWL-LR_150 12500lm 77W I 840 IP54 PMMA ASB	12500	77	162	54	assymetric
700151492320	DWL-LR_150 12500lm 77W I 840 IP54 PMMA WB	12500	77	162	54	symmetric 90 dgr
700151492310	DWL-LR_150 12500lm 77W I 840 IP54 PMMA MB	12500	77	162	54	symmetric 60 dgr
700151492300	DWL-LR_150 12500lm 77W I 840 IP54 PMMA NB	12500	77	162	54	symmetric 30 dgr

PRODUCT INFORMATION

TYPE

Product type:

DWL-LR

FUNCTIONALITY

Initial LED luminaire efficacy:

Up to 166 lm/W depends on the type
Color Rendering Index (CRI):

> 80
Power supply:

Driver Philips or Tridonic included
Light source:

LED module with Osram LED chips
Color temperature:

4000K as a standard, 3000,5000,6500K on request
Managing options:

DALI, Motion sensor, wireless connections.
Emergency battery operated hours:

Philips TrustSight system 3 hours light (Basic or self test)
Color tolerance (initial McAdam):

3
Initial light output, lm:

Up to 12500lm
Light distribution:

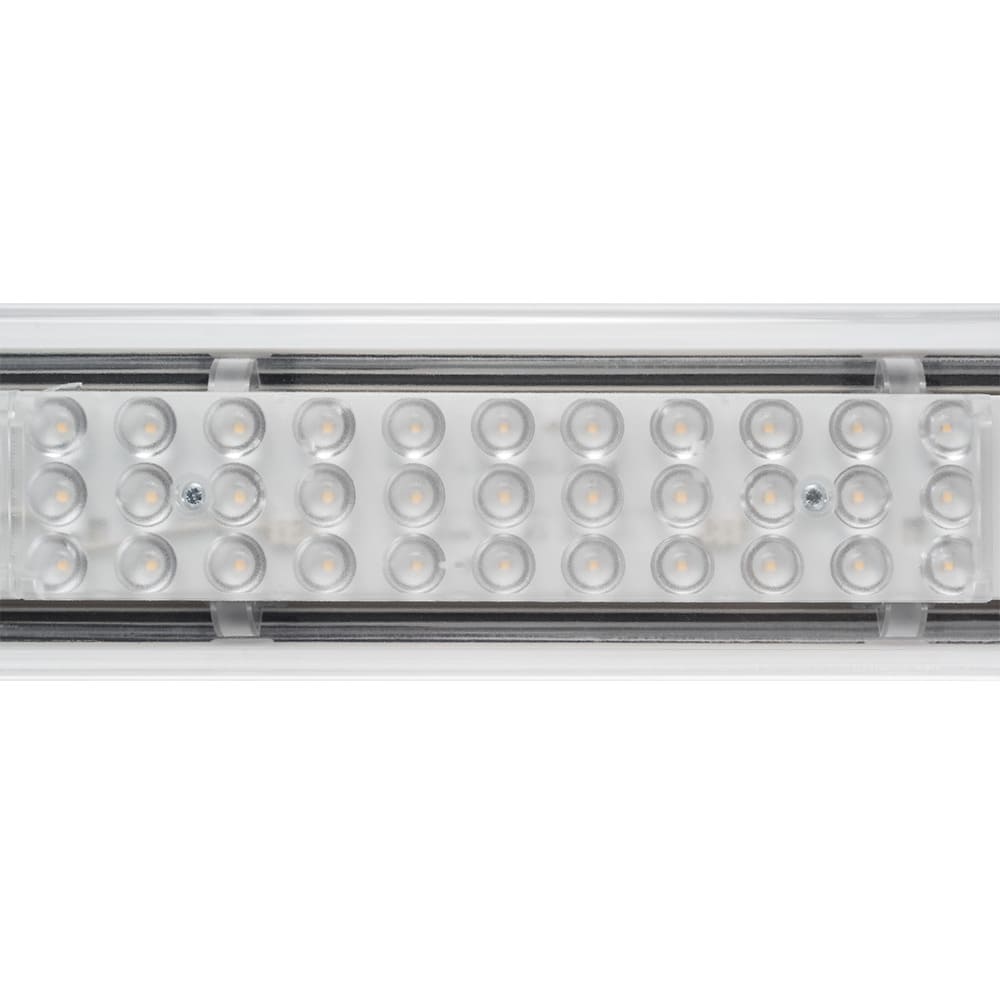

- 3-row PMMA optic with
- Narrow beam (NB) – 30 dgr
- Medium beam (MB) – 60 dgr
- Wide beam (WB) – 90 dgr on request
- Asymmetric – (ASB) on request
- Double asymmetric (DASB) on request

ELECTRICAL PARAMETERS

Driver efficiency nominal:

Up to 95
Electrical isolation class IEC:

Class I or Class II on request
Power factor nominal:

0,93
Input voltage:

220 – 240 V
Power consumption:

Up to 90 W depending on type

MECHANICAL PARAMETERS

Ingress protection:

IP54
Impact resistance:

05

OVERTIME PERFORMANCE

Median useful life of LED source:

L80B20 - 50 000 hours

GENERAL INFORMATION

Dimensions:

Description
L, mm
H, mm
B, mm
DWL-LR_120
1260
105
95
DWL-LR_150
1560
105
95
Warranty period:

5 years
Pcs on the pallet:

80
Application:
- Parking garages
- Basements
- Warehouses
- General lighting
