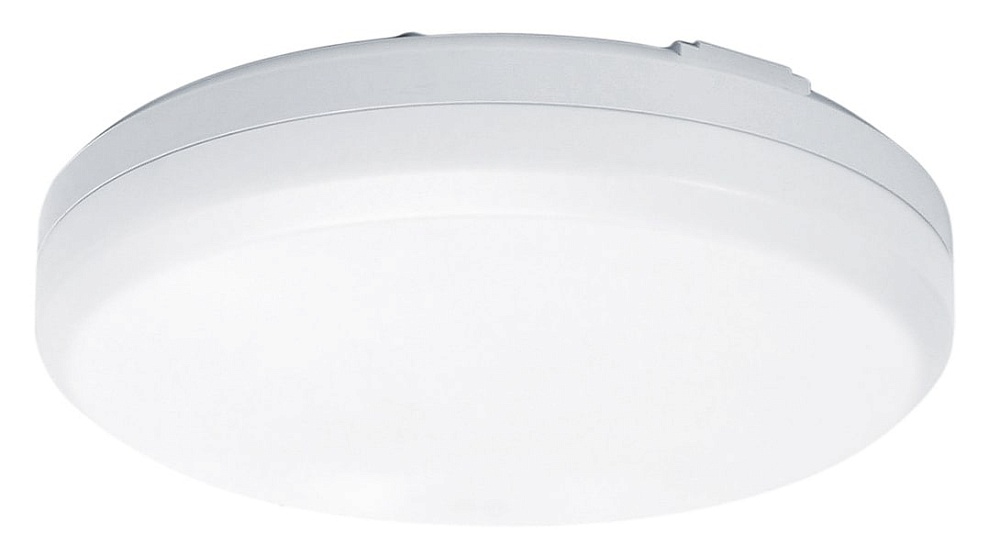

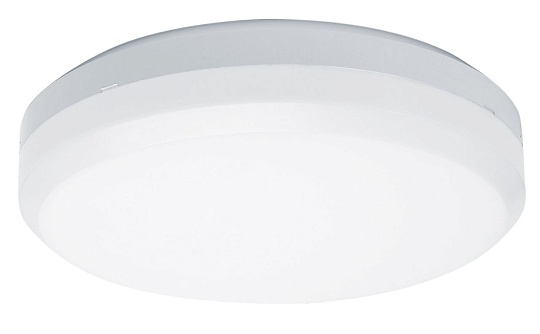

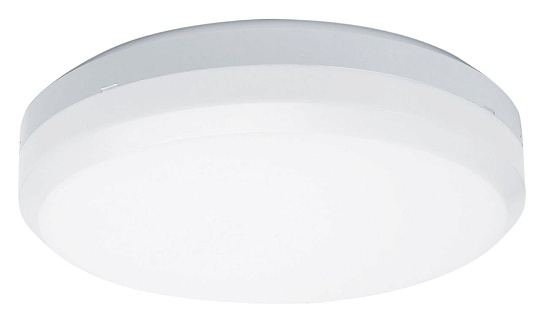

DWL-R

PRODUCT INFORMATION

TYPE

• Product type:
  DWL-R

FUNCTIONALITY

• Initial LED luminaire efficacy:
  120 lm/W
• Color Rendering Index (CRI):
  > 80
• Power supply:
  Driver Philips or Tridonic included
• Light source:
  LED module with Osram LED chips
• Color temperature:
  4000K as a standard, 3000,5000,6500K on request
• Managing options:
  DALI, 1-10V, Motion sensor, wireless connections.
• Emergency battery operated hours:
  Philips TrustSight system 3 hours light (available only foe DW-R_360)
• Color tolerance (initial McAdam)
  3

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0,87
• Electrical isolation class IEC:
  Class I or Class II on request
• Power factor nominal:
  0,93
• Input voltage:
  220 – 240 V
• Power consumption:
  10-26 W depending on type

MECHANICAL PARAMETERS

• Ingress protection:
  IP65
• Impact resistance:
  05 for PMMA diffuser and IK10 for PC diffuser

OVERTIME PERFORMANCE

• Median useful life of LED source:
  L80B20 - 50 000 hours

GENERAL INFORMATION

• Dimensions:

  Description	D,mm	B,mm
  DWL-S_260	260	90
  DWL-S_360	360	90

• Warranty period:
  5 years
• Pcs on the pallet:
  90
• Application:
  • Parking garages
  • Basements
  • Cellars
  • Warehouses
  • General lighting
