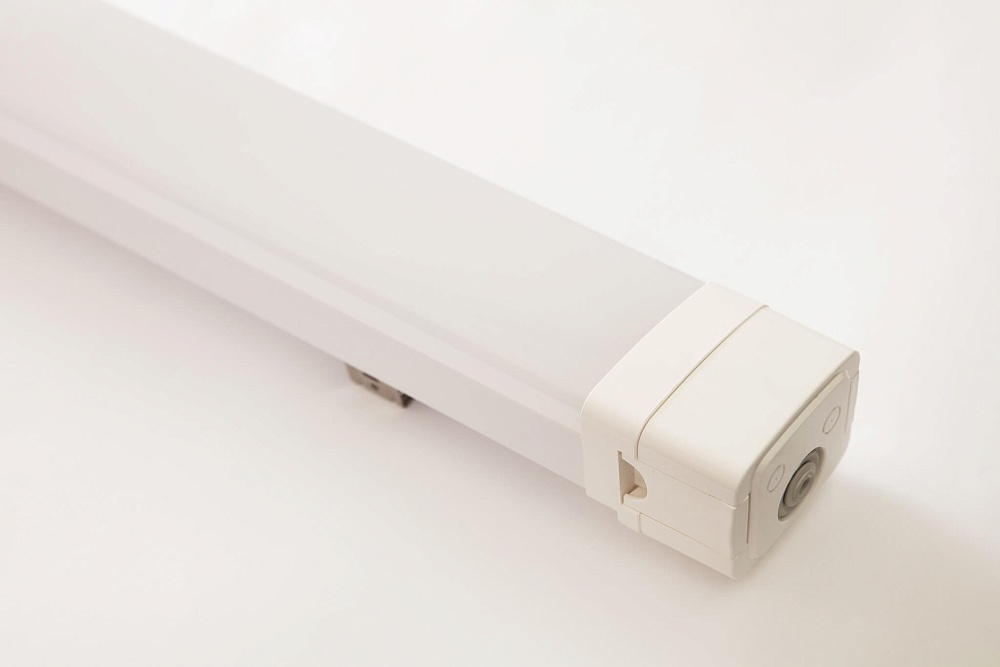

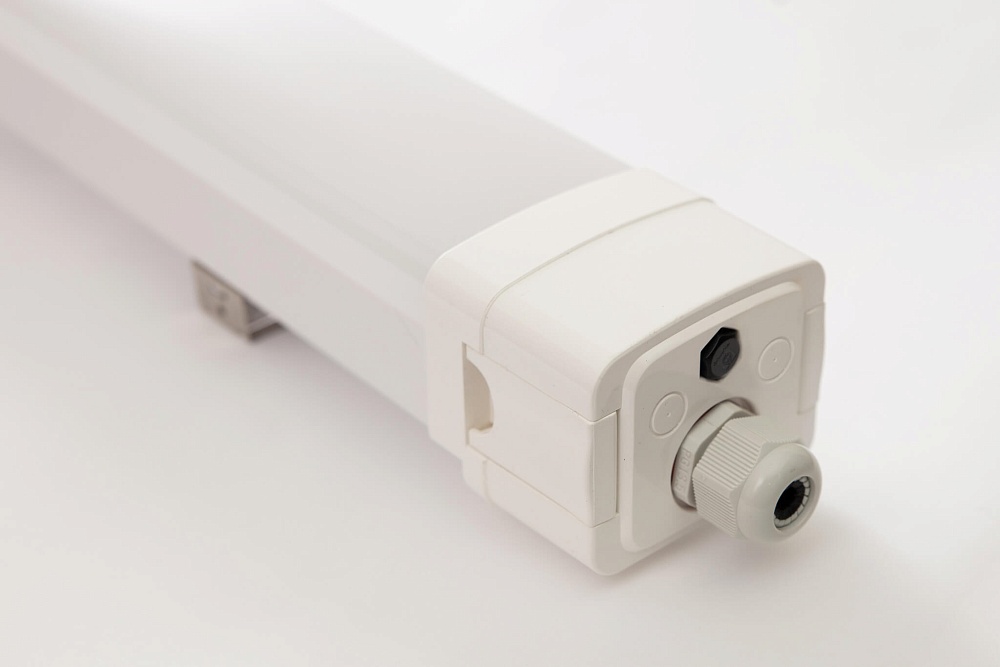

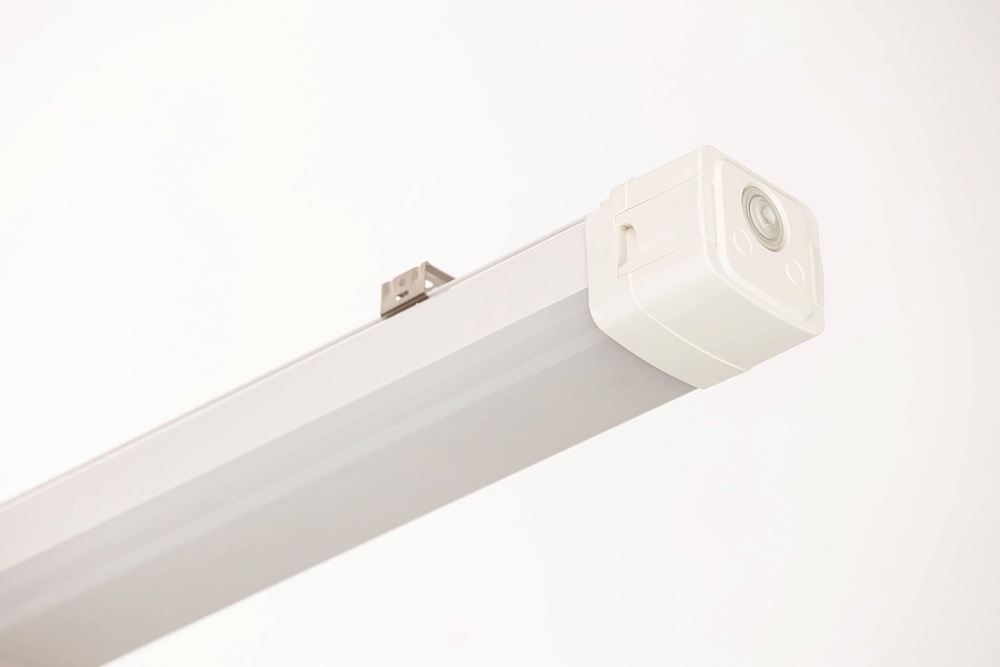

DCW117 Xtrude Slim Low Voltage

PRODUCT INFORMATION

TYPE

• Product type:
  DCW 117 Xtrude Slim LV

FUNCTIONALITY

• Driver:
  Driver MeanWell
• Initial LED luminaire efficacy:
  140Lm/W
• Optical cover:
  Polycarbonate (PC) by co-extrusion
• Light Color:
  4000 K as a standard, 3000K on request
• Color Rendering Index (CRI):
  > 80
• Light Output Range, Lm:
  1900-3700 lm depending on type
• Optical types:
  Wide. 120 dgr light distribution
• Power supply:
  Driver MeanWell included
• Light source:
  LED module, OSRAM Led chips

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0,87-0,92 depends on type
• Electrical isolation class IEC:
  Class II
• Input Frequency:
  DC
• Power factor nominal:
  n/a
• Input voltage:
  12-24 V
• Power consumption:
  13 or 26 W depending on type

MECHANICAL PARAMETERS

• Ingress protection:
  IP65
• Impact resistance:
  IK08
• Installation:
  On surface
• Body material:
  Polycarbonate (PC) by co-extrusion

OVERTIME PERFORMANCE

• Driver service life time @10% failures:
  50000-100 000 hours depends on type
• Initial system efficacy:
  140Lm/W
• Luminous flux system tolerance:
  +/- 5%
• Median useful life of LED source:
  L80B20, 100 000 Hours
• Power consumption tolerance:
  +/- 5%

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  -20+35 C

GENERAL INFORMATION

• Flammability:
  Not fire resistant
• CE mark:
  CE mark
• ROHS mark:
  ROHS mark
• Application:
  • Parking garages
  • Warehouses
  • General lighting

NUMBER OF LUMINARIES/MCB

• Table:

  Description	Number on luminaires per MCB
  	B10	B16	C10	C16
  DCW117 XTrude 060 LED025 20W IP66 OP	14	22	23	37
  DCW117 XTrude 120 LED050 35W IP66 OP	22	26	22	36
  DCW117 XTrude 120 LED075 50W IP66 OP	22	26	22	36
  DCW117 XTrude 150 LED095 60W IP66 OP	22	26	22	36
  DCW117 XTrude 150 LED110 75W IP66 OP	15	24	25	41
