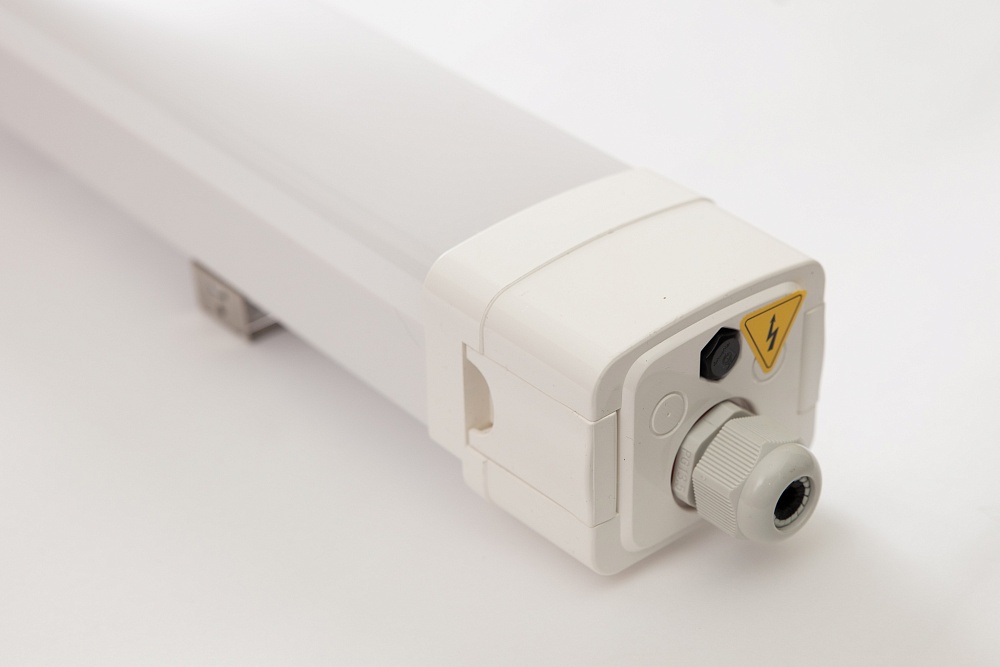

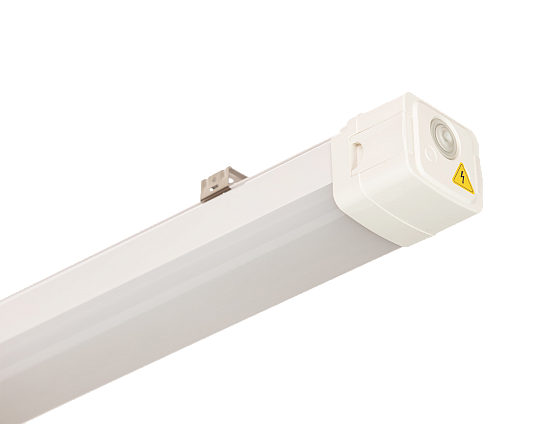

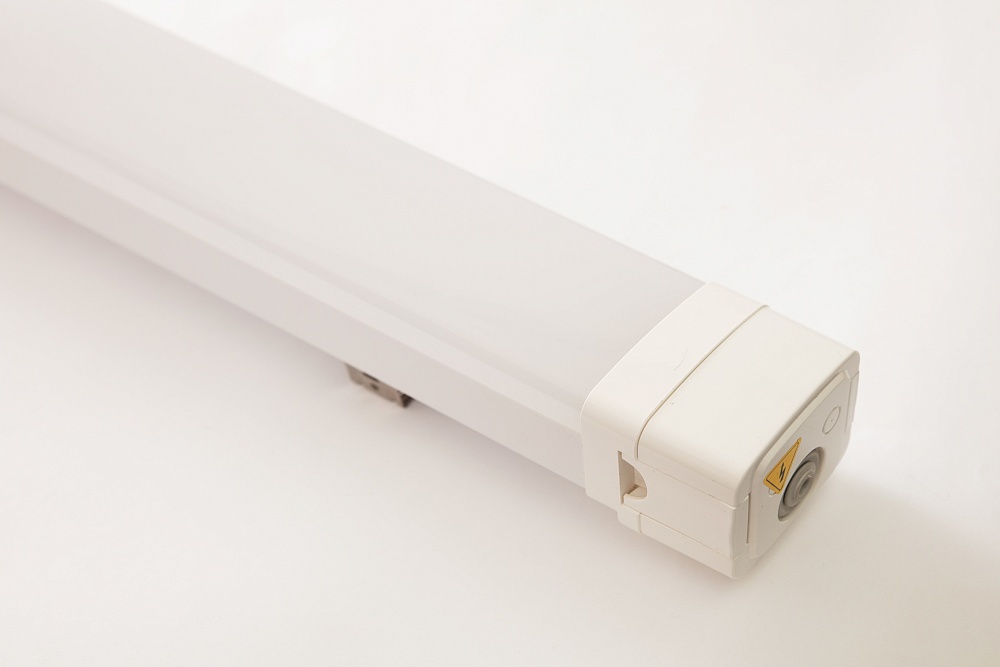

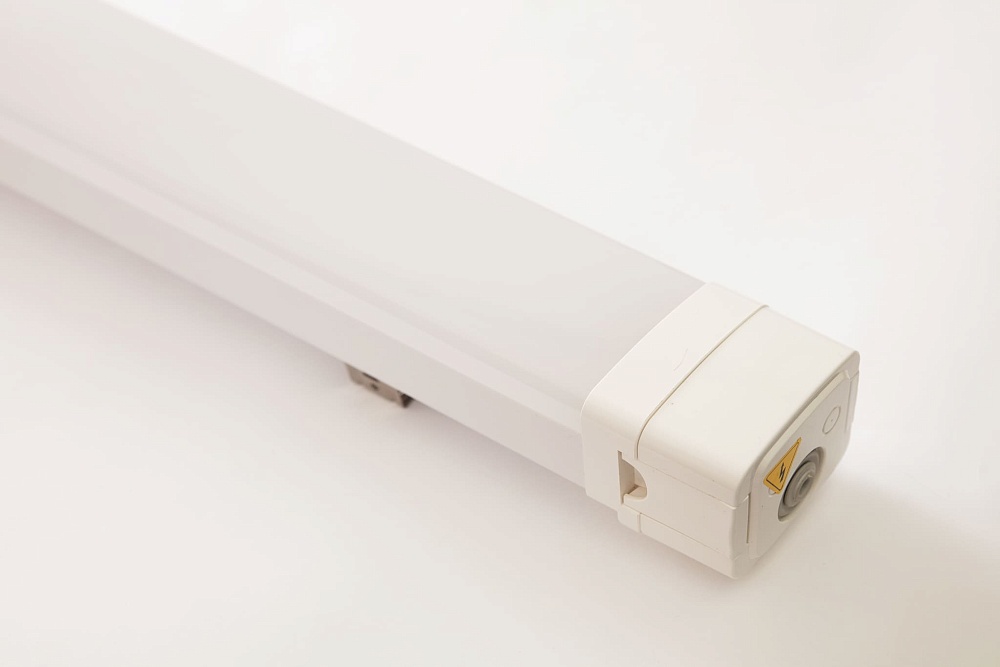

DCW117 Xtrude Slim

PRODUCT INFORMATION

FUNCTIONALITY

• Initial LED luminaire efficacy:
  Up to 158 Lm/W depends on type
• Optical cover:
  Polycarbonate (PC) by co-extrusion
• Color Rendering Index (CRI):
  > 80
• Power supply:
  Driver Philips or Tridonic included
• Light source:
  LED module, OSRAM Led chips

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0,87-0,92 depends on type
• Electrical isolation class IEC:
  Class I or II on request
• Input Frequency:
  50-60 Hz
• Power factor nominal:
  0,95
• Input voltage:
  220 – 240 V
• Power consumption:
  11-75 W depending on type

MECHANICAL PARAMETERS

• Ingress protection:
  IP65 as standard, IP66, IP68 on request
• Impact resistance:
  IK08

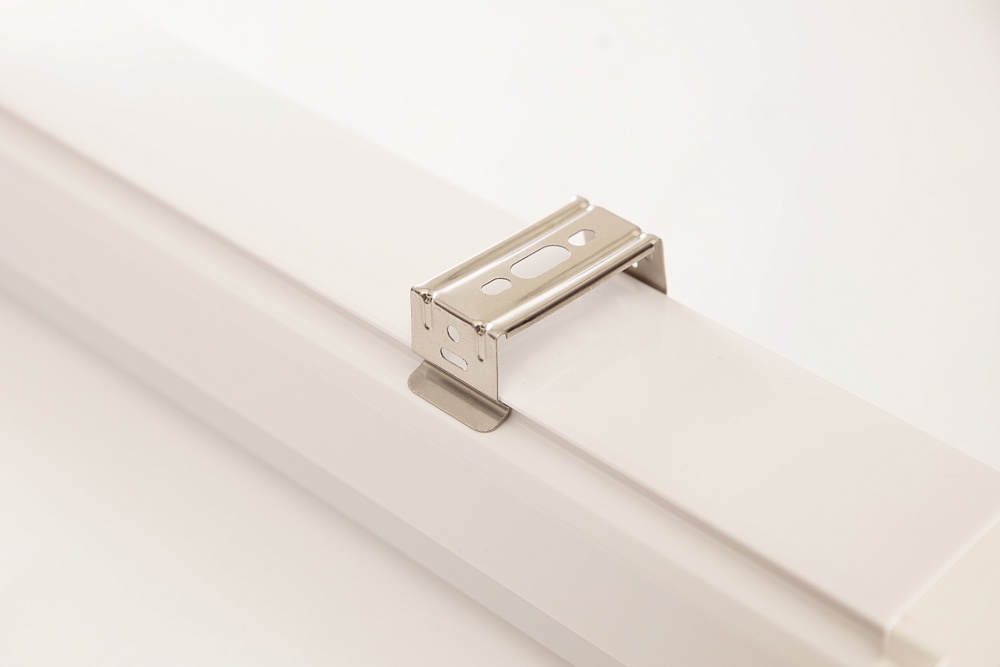

• Installation:
  On surface
• Body material:
  Polycarbonate (PC) by co-extrusion

OVERTIME PERFORMANCE

• Driver service life time @10% failures:
  50000-100 000 hours depends on type
• Initial system efficacy:
  up to 158Lm/W
• Luminous flux system tolerance:
  +/- 5%
• Median useful life of LED source:
  L80B20, 50 000 Hours
• Power consumption tolerance:
  +/- 3%

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  -20+35 C

GENERAL INFORMATION

• Flammability:
  Not fire resistant
• CE mark:
  CE mark
• ROHS mark:
  ROHS mark
• Application:
  • Parking garages
  • Warehouses
  • General lighting
