STREET LIGHTING

VIKING GEN2 DKS850

VIKING GEN2 DKS850

Benefits and downloads

Benefits:

Downloads:

PRODUCT INFORMATION

TYPE

ELECTRICAL PARAMETERS

LIGHTING PERFORMANCE

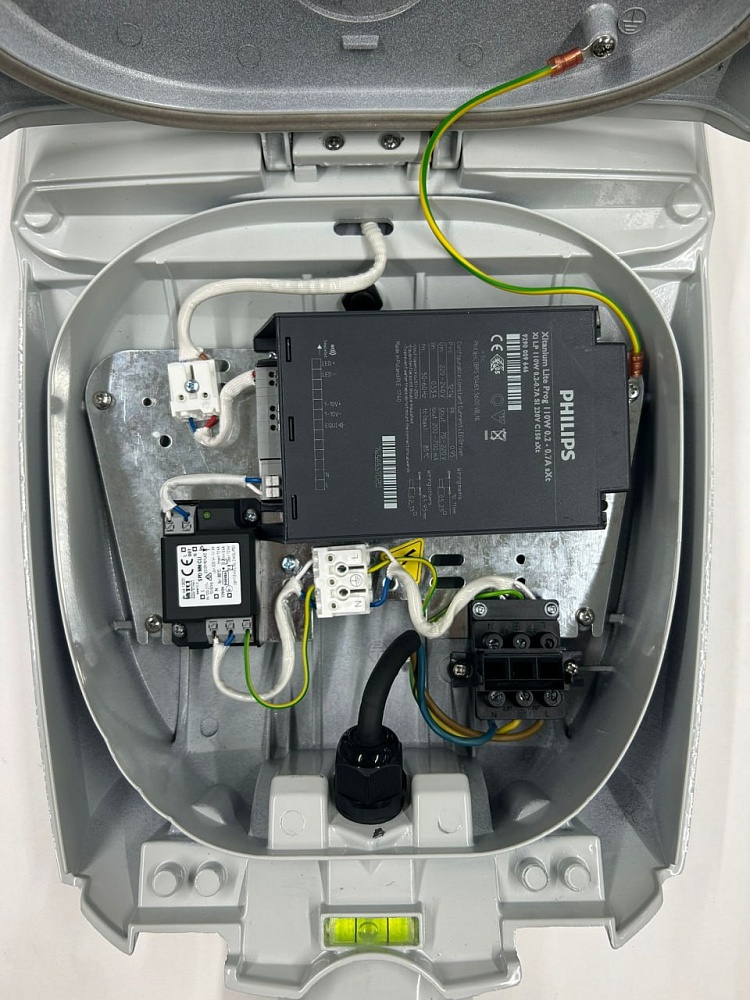

CONSTRUCTION AND MATERIALS

CONTROLS AND DIMMING

OPERATION AND MAINTENANCE

MARKING AND APPROVALS

Enegry class depending on optic and light color

Type of optic

1800K

2700K

3000K

4000K

NB1, NB2, NB3, AST4

D

C

C

B

WB

D

D

D

C

Number of luminaires on MCB (max)

Power

Number of luminaires on MCB (max)

B10

B16

C10

C16

17W-22W

28

48

28

48

26-34W

22

32

22

32

52W-105W

6

10

6

10

105-136W

5

7

5

7

170-204W

6

10

6

10

Street-HighPower-Optics

Name

Application

Polar diagram

NB1

Asymmetric for M and P class roads (balanced luminance – illuminance) that are equal to or wider than the mounting height, medium pole distances


NB2

Asymmetric for M-class roads (luminance) that are equal to or wider than the mounting height, medium pole distances


NB3

Asymmetric for M-class roads (luminance) where width is less than the mounting height, medium pole distances


WB

Asymmetric for M and P class roads (balance of luminance – illuminance) that are equal to or less than the mounting height, long pole distances


ASR

Double asymmetric for pedestrian crossings, right side traffic


ASL

Double asymmetric for pedestrian crossings, left side traffic




Luminaire type

Weight

Wind force area – top

Wind force area – side

DKS850 Size A

5,30 kg

0,132 m2

0,020 m2

DKS850 Size B

6,60 kg

0,193 m2

0,049 m2

DKS850 Size C

9,90 kg

0,221 m2

0,053 m2

Standard product list

EOC DESCRIPTON Lumen output,LM Power,W Efficacy L/W Optic type CCT,K
600151737900 DKS850 29200LM 204W C 757 ASL 40-60 IC1 29200 204 143 ASL 757
600151736900 DKS850 29200LM 204W C 757 ASR 40-60 IC0 29200 204 143 ASR 757
600151737800 DKS850 25200LM 170W C 757 ASL 40-60 IC1 25400 170 149 ASL 757
600151736800 DKS850 252000LM 170W C 757 ASR 40-60 IC0 25400 170 149 ASR 757
600151737700 DKS850 20100LM 136W C 757 ASL 40-60 IC1 20100 136 148 ASL 757
600151736700 DKS850 20100LM 136W C 757 ASR 40-60 IC0 20100 136 148 ASR 757
600151637600 DKS850 15500LM 105W B 757 ASL 40-60 IC1 15500 105 148 ASL 757
600151636600 DKS850 15500LM 105W B 757 ASR 40-60 IC0 15500 105 148 ASR 757
600151637500 DKS850 12800LM 85W B 757 ASL 40-60 IC1 12800 85 151 ASL 757
600151636500 DKS850 12800LM 85W B 757 ASR 40-60 IC0 12800 85 151 ASR 757
600151537400 DKS850 11900LM 77W A 757 ASL 40-60 IC1 11900 77 151 ASL 757
600151536400 DKS850 11900LM 77W A 757 ASR 40-60 IC0 11900 77 155 ASR 757
600151537300 DKS850 8100LM 52W A 757 ASL 40-60 IC1 8100 52 156 ASL 757
600151536300 DKS850 8100LM 52W A 757 ASR 40-60 IC0 8100 52 156 ASR 757
600151537200 DKS850 5200LM 34W A 757 ASL 40-60 IC1 5400 34 159 ASL 757
600151536200 DKS850 5200LM 34W A 757 ASR 40-60 IC0 5400 34 159 ASR 757
600151537100 DKS850 3900LM 26W A 757 ASL 40-60 IC1 3900 26 150 ASL 757
600151536100 DKS850 3900LM 26W A 757 ASR 40-60 IC0 3900 26 150 ASR 757
600151537000 DKS850 2700LM 17W A 757 ASL 40-60 IC1 2700 17 159 ASL 757
600151536000 DKS850 2700LM 17W A 757 ASR 40-60 IC0 2700 17 159 ASR 757
600151715900 DKS850 29000LM 204W C 740 AST4 40-60 IC0 29000 204 142 AST4 740
600151714900 DKS850 275000LM 204W C 740 WB 40-60 IC0 27500 204 135 WB 740
600151713900 DKS850 29000LM 204W C 740 NB3 40-60 IC0 29000 204 142 NB3 740
600151712900 DKS850 29000LM 204W C 740 NB2 40-60 IC0 29000 204 142 NB2 740
600151711900 DKS850 29000LM 204W C 740 NB1 40-60 IC0 29000 204 142 NB1 740
600151715800 DKS850 23700LM 170W C 740 AST4 40-60 IC0 23700 170 139 AST4 740
600151714800 DKS850 22000LM 170W C 740 WB 40-60 IC0 22000 170 129 WB 740
600151713800 DKS850 23700LM 170W C 740 NB3 40-60 IC0 23700 170 139 NB3 740
600151712800 DKS850 23700LM 170W C 740 NB2 40-60 IC0 23700 170 139 NB2 740
600151711800 DKS850 23700LM 170W C 740 NB1 40-60 IC0 23700 170 139 NB1 740
600151715700 DKS850 19600LM 136W C 740 AST4 40-60 IC0 19000 136 140 AST4 740
600151714700 DKS850 17600LM 136W C 740 WB 40-60 IC0 17600 136 129 WB 740
600151713700 DKS850 19600LM 136W C 740 NB3 40-60 IC0 19000 136 140 NB3 740
600151712700 DKS850 19600LM 136W C 740 NB2 40-60 IC0 19000 136 140 NB2 740
600151711700 DKS850 19600LM 136W C 740 NB1 40-60 IC0 19000 136 140 NB1 740
600151615600 DKS850 14700LM 105W B 740 AST4 40-60 IC0 14700 105 140 AST4 740
600151614600 DKS850 13700LM 105W B 740 WB 40-60 IC0 13700 105 130 WB 740
600151613600 DKS850 14700LM 105W B 740 NB3 40-60 IC0 14700 105 140 NB3 740
600151612600 DKS850 14700LM 105W B 740 NB2 40-60 IC0 14700 105 140 NB2 740
600151611600 DKS850 14700LM 105W B 740 NB1 40-60 IC0 14700 105 140 NB1 740
600151615500 DKS850 12000LM 85W B 740 AST4 40-60 IC0 12000 85 141 AST4 740
600151614500 DKS850 11500LM 85W B 740 WB 40-60 IC0 11500 85 135 WB 740
600151613500 DKS850 12000LM 85W B 740 NB3 40-60 IC0 12000 85 141 NB3 740
600151612500 DKS850 12000LM 85W B 740 NB2 40-60 IC0 12000 85 141 NB2 740
600151611500 DKS850 12000LM 85W B 740 NB1 40-60 IC0 12000 85 141 NB1 740
600151515400 DKS850 11100LM 77W A 740 AST4 40-60 IC0 11100 77 144 AST4 740
600151514400 DKS850 10500LM 77W A 740 WB 40-60 IC0 10500 77 136 WB 740
600151513400 DKS850 11100LM 77W A 740 NB3 40-60 IC0 11100 77 144 NB3 740
600151512400 DKS850 11100LM 77W A 740 NB2 40-60 IC0 11100 77 144 NB2 740
600151511400 DKS850 11100LM 77W A 740 NB1 40-60 IC0 11100 77 144 NB1 740
600151515300 DKS850 7500LM 52W A 740 AST4 40-60 IC4 7500 52 144 AST4 740
600151514300 DKS850 6900LM 52W A 740 WB 40-60 IC3 6900 52 133 WB 740
600151513300 DKS850 7500LM 52W A 740 NB3 40-60 IC2 7500 52 144 NB3 740
600151512300 DKS850 7500LM 52W A 740 NB2 40-60 IC1 7500 52 144 NB2 740
600151511300 DKS850 7500LM 52W A 740 NB1 40-60 IC0 7500 52 144 NB1 740
600151514200 DKS850 4700LM 34W A 740 WB 40-60 IC0 4700 34 138 WB 740
600151513200 DKS850 5000LM 34W A 740 NB3 40-60 IC0 5000 34 146 NB3 740
600151512200 DKS850 5000LM 34W A 740 NB2 40-60 IC0 5000 34 146 NB2 740
600151511200 DKS850 5000LM 34W A 740 NB3 40-60 IC0 5000 34 146 NB1 740
600151514100 DKS850 3500LM 26W A 740 WB 40-60 IC0 3500 26 135 WB 740
600151513100 DKS850 3650LM 26W A 740 NB3 40-60 IC0 3650 26 140 NB3 740
600151512100 DKS850 3650LM 26W A 740 NB2 40-60 IC0 3650 26 140 NB2 740
600151511100 DKS850 3650LM 26W A 740 NB1 40-60 IC0 3650 26 140 NB1 740
600151514000 DKS850 2350LM 17W A 740 WB 40-60 IC0 2350 17 138 WB 740
600151513000 DKS850 2460LM 17W A 740 NB3 40-60 IC0 2460 17 145 NB3 740
600151512000 DKS850 2460LM 17W A 740 NB2 40-60 IC0 2460 17 145 NB2 740
600151511000 DKS850 2460LM 17W A 740 NB1 40-60 IC0 2460 17 145 NB1 740
600151725900 DKS850 27200LM 204W C 730 AST4 40-60 IC0 27200 204 133 AST4 730
600151724900 DKS850 25770LM 204W C 730 WB 40-60 IC0 25800 204 126 WB 730
600151723900 DKS850 27200LM 204W C 730 NB3 40-60 IC0 27200 204 133 NB3 730
600151722900 DKS850 27200LM 204W C 730 NB2 40-60 IC0 27200 204 133 NB2 730
600151721900 DKS850 27200LM 204W C 730 NB1 40-60 IC0 27200 204 133 NB1 730
600151725800 DKS850 22600LM 170W C 730 AST4 40-60 IC0 22600 170 133 AST4 730
600151724800 DKS850 21000LM 170W C 730 WB 40-60 IC0 21000 170 124 WB 730
600151723800 DKS850 22600LM 170W C 730 NB3 40-60 IC0 22600 170 133 NB3 730
600151722800 DKS850 22600LM 170W C 730 NB2 40-60 IC0 22600 170 133 NB2 730
600151721800 DKS850 22600LM 170W C 730 NB1 40-60 IC0 22600 170 133 NB1 730
600151725700 DKS850 17100LM 136W C 730 AST4 40-60 IC0 18100 136 133 AST4 730
600151724700 DKS850 17500LM 136W C 730 WB 40-60 IC0 17500 136 129 WB 730
600151723700 DKS850 18100LM 136W C 730 NB3 40-60 IC0 18100 136 133 NB3 730
600151722700 DKS850 18100LM 136W C 730 NB2 40-60 IC0 18100 136 133 NB2 730
600151721700 DKS850 18100LM 136W C 730 NB1 40-60 IC0 18100 136 133 NB1 730
600151625600 DKS850 13950LM 104W B 730 AST4 40-60 IC0 13950 105 133 AST4 730
600151624600 DKS850 12900LM 104W B 730 WB 40-60 IC0 12900 105 123 WB 730
600151623600 DKS850 13950LM 104W B 730 NB3 40-60 IC0 13950 105 133 NB3 730
600151622600 DKS850 13950LM 104W B 730 NB2 40-60 IC0 13950 105 133 NB2 730
600151621600 DKS850 13950LM 104W B 730 NB1 40-60 IC0 13950 105 133 NB1 730
600151625500 DKS850 11450LM 85W B 730 AST4 40-60 IC0 11450 85 135 AST4 730
600151624500 DKS850 11150LM 85W B 730 WB 40-60 IC0 11150 85 131 WB 730
600151623500 DKS850 11450LM 85W B 730 NB3 40-60 IC0 11450 85 135 NB3 730
600151622500 DKS850 11450LM 85W B 730 NB2 40-60 IC0 11450 85 135 NB2 730
600151621500 DKS850 11450LM 85W B 730 NB1 40-60 IC0 11450 85 135 NB1 730
600151545400 DKS850 10650LM 77W A 730 AST4 40-60 IC0 10650 77 138 AST4 730
600151544400 DKS850 10100LM 77W A 730 WB 40-60 IC0 10100 77 131 WB 730
600151543400 DKS850 10650LM 77W A 730 NB3 40-60 IC0 10650 77 138 NB3 730
600151542400 DKS850 10650LM 77W A 730 NB2 40-60 IC0 10650 77 138 NB2 730
600151541400 DKS850 10650LM 77W A 730 NB1 40-60 IC0 10650 77 138 NB1 730
600151545300 DKS850 7200LM 52W A 730 AST4 40-60 IC0 7200 52 138 AST4 730
600151544300 DKS850 6800LM 52W A 730 WB 40-60 IC0 6800 52 131 WB 730
600151543300 DKS850 7200LM 52W A 730 NB3 40-60 IC0 7200 52 138 NB3 730
600151542300 DKS850 7200LM 52W A 730 NB2 40-60 IC0 7200 52 138 NB2 730
600151541300 DKS850 7200LM 52W A 730 NB1 40-60 IC0 7200 52 138 NB1 730
600151544200 DKS850 4500LM 34W A 730 WB 40-60 IC0 4500 34 132 WB 730
600151543200 DKS850 4700LM 34W A 730 NB3 40-60 IC0 4700 34 138 NB3 730
600151542200 DKS850 4700LM 34W A 730 NB2 40-60 IC0 4700 34 138 NB2 730
600151541200 DKS850 4700LM 34W A 730 NB1 40-60 IC0 4700 34 138 NB1 730
600151544100 DKS850 3200LM 26W A 730 WB 40-60 IC0 3200 26 123 WB 730
600151543100 DKS850 3520LM 26W A 730 NB3 40-60 IC0 3520 26 135 NB3 730
600151542100 DKS850 3520LM 26W A 730 NB2 40-60 IC0 3520 26 135 NB2 730
600151541100 DKS850 3520LM 26W A 730 NB1 40-60 IC0 3520 26 135 NB1 730
600151544000 DKS850 2150LM 17W A 730 WB 40-60 IC0 2150 17 126 WB 730
600151543000 DKS850 2350LM 17W A 730 NB3 40-60 IC0 2350 17 138 NB3 730
600151542000 DKS850 2350LM 17W A 730 NB2 40-60 IC0 2350 17 138 NB2 730
600151541000 DKS850 2350LM 17W A 730 NB1 40-60 IC0 2350 17 138 NB1 730
600151705900 DKS850 17700LM 204W C 717 AST4 D76 IC0 18000 204 88 AST4 718
600151704900 DKS850 16100LM 204W C 717 WB D76 IC0 16100 204 79 WB 718
600151703900 DKS850 17700LM 204W C 717 NB3 D76 IC0 18000 204 88 NB3 718
600151702900 DKS850 17700LM 204W C 717 NB2 D76 IC0 18000 204 88 NB2 718
600151701900 DKS850 17700LM 204W C 717 NB1 D76 IC0 18000 204 88 NB1 718
600151705800 DKS850 15000LM 170W C 717 AST4 D76 IC0 15000 170 88 AST4 718
600151704800 DKS850 13500LM 170W C 717 WB D76 IC0 13500 170 79 WB 718
600151703800 DKS850 15000LM 170W C 717 NB3 D76 IC0 15000 170 88 NB3 718
600151702800 DKS850 15000LM 170W C 717 NB2 D76 IC0 15000 170 88 NB2 718
600151701800 DKS850 15000LM 170W C 717 NB1 D76 IC0 15000 170 88 NB1 718
600151705700 DKS850 12000LM 136W C 717 AST4 D76 IC0 12000 136 88 AST4 718
600151704700 DKS850 10800LM 136W C 717 WB D76 IC0 10800 136 79 WB 718
600151703700 DKS850 12000LM 136W C 717 NB3 D76 IC0 12000 136 88 NB3 718
600151702700 DKS850 12000LM 136W C 717 NB2 D76 IC0 12000 136 88 NB2 718
600151701700 DKS850 12000LM 136W C 717 NB1 D76 IC0 12000 136 88 NB1 718
600151605600 DKS850 9300LM 105W B 717 AST4 D76 IC0 9300 105 89 AST4 718
600151604600 DKS850 8300LM 105W B 717 WB D76 IC0 8300 105 79 WB 718
600151603600 DKS850 9300LM 105W B 717 NB3 D76 IC0 9300 105 89 NB3 718
600151602600 DKS850 9300LM 105W B 717 NB2 D76 IC0 9300 105 89 NB2 718
600151601600 DKS850 9300LM 105W B 717 NB1 D76 IC0 9300 105 89 NB1 718
600151605500 DKS850 7600LM 85W B 717 AST4 D76 IC0 7600 85 89 AST4 718
600151604500 DKS850 6800LM 85W B 717 WB D76 IC0 6800 85 80 WB 718
600151603500 DKS850 7600LM 85W B 717 NB3 D76 IC0 7600 85 89 NB3 718
600151602500 DKS850 7600LM 85W B 717 NB2 D76 IC0 7600 85 89 NB2 718
600151601500 DKS850 7600LM 85W B 717 NB1 D76 IC0 7600 85 89 NB1 718
600151505400 DKS850 7100LM 77W A 717 AST4 D76 IC0 7100 77 92 AST4 718
600151504400 DKS850 6300LM 77W A 717 WB D76 IC0 6300 77 82 WB 718
600151503400 DKS850 7100LM 77W A 717 NB3 D76 IC0 7100 77 92 NB3 718
600151502400 DKS850 7100LM 77W A 717 NB2 D76 IC0 7100 77 92 NB2 718
600151501400 DKS850 7100LM 77W A 717 NB1 D76 IC0 7100 77 92 NB1 718
600151505300 DKS850 4600LM 52W A 717 AST4 D76 IC0 4600 52 88 AST4 718
600151504300 DKS850 4100LM 52W A 717 WB D76 IC0 4100 52 79 WB 718
600151503300 DKS850 4600LM 52W A 717 NB3 D76 IC0 4600 52 88 NB3 718
600151502300 DKS850 4600LM 52W A 717 NB2 D76 IC0 4600 52 88 NB2 718
600151501300 DKS850 4600LM 52W A 717 NB1 D76 IC0 4600 52 88 NB1 718
600151504200 DKS850 2800LM 36W A 717 WB D76 IC0 2800 34 82 WB 718
600151503200 DKS850 3100LM 36W A 717 NB3 D76 IC0 3100 34 91 NB3 718
600151502200 DKS850 3100LM 36W A 717 NB2 D76 IC0 3100 34 91 NB2 718
600151501200 DKS850 3100LM 36W A 717 NB1 D76 IC0 3100 34 91 NB1 718
600151504100 DKS850 1950LM 26W A 717 WB D76 IC0 1950 26 75 WB 718
600151503100 DKS850 2300LM 26W A 717 NB3 D76 IC0 2300 26 88 NB3 718
600151502100 DKS850 2300LM 26W A 717 NB2 D76 IC0 2300 26 88 NB2 718
600151501100 DKS850 2300LM 26W A 717 NB1 D76 IC0 2300 26 88 NB1 718
600151504000 DKS850 1400LM 17W A 717 WB D76 IC0 1400 17 82 WB 718
600151503000 DKS850 1550LM 17W A 717 NB3 D76 IC0 1550 17 91 NB3 718
600151502000 DKS850 1550LM 17W A 717 NB2 D76 IC0 1550 17 91 NB2 718
600151501000 DKS850 1550LM 17W A 717 NB1 D76 IC0 1550 17 91 NB1 718

CONTACT US FOR MORE INFORMATION

CONTACT US
