MALMÖ MIDI

PRODUCT INFORMATION

TYPE

• Product type:
  MALMÖ MIDI DKS 675

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  up to 0.92
• Driver failure ratio:
  < 10% at 50000 or 100000 hours depends on type
• Driver type:
  Built in PHILIPS Xitanium Outdoor driver
• Electrical isolation class IEC:
  Safety class I as a standard, II on request
• Input Frequency:
  50-60 Hz
• LED current ripple %:
  230 – 240 V / 50 – 60 Hz
• Mains voltage index:
  230 – 240 V / 50 – 60 Hz
• Nominal input voltage range:
  202..254 or 198…264, depends on type
• Power factor nominal:
  up to 0.98
• Power range:
  81-107W depending on type
• Surge protection:
  4/6 kV

LIGHTING PERFORMANCE

• CCT:
  3000K, 4000K, 5700K
• Color rendering index, CRI:
  > 70
• Initial color shift, SDCM:
  < 5
• Light distribution:
  Asymmetric for roads, areas, walkways, pedestrian crossings and other types on request

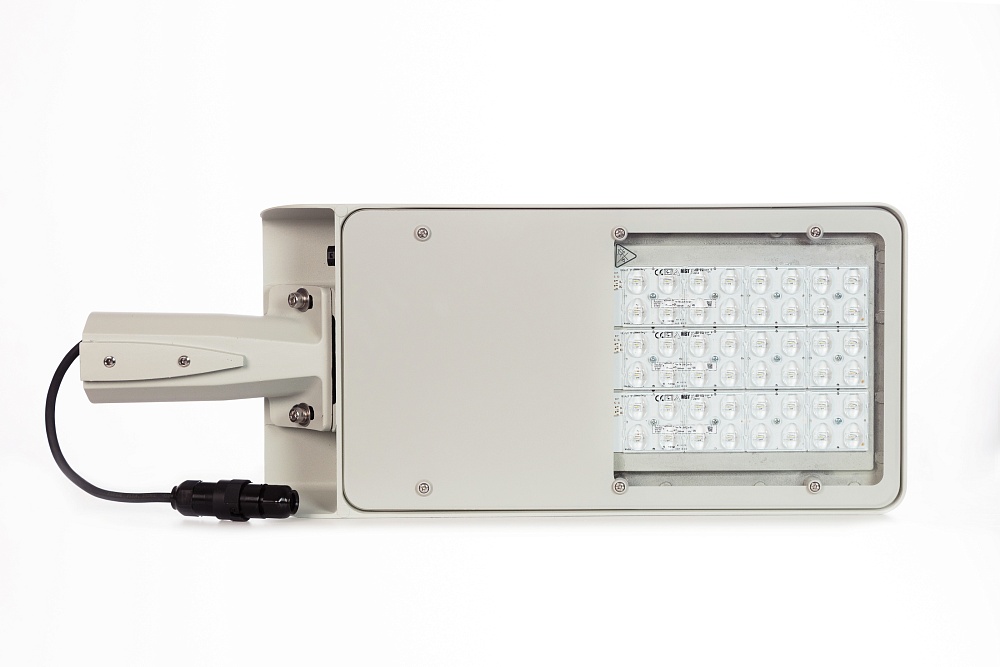

• Light source:
  Modules with OSRAM long life ceramic package LED chips with silicone lens diodes
• LOR:
  up to 0,94
• Luminaire lumen output range, lm:
  9300….12300 lm depending on type
• Photobiological safety:
  RG1
• Type of optic:
  Low ageing PMMA lenses

CONSTRUCTION AND MATERIALS

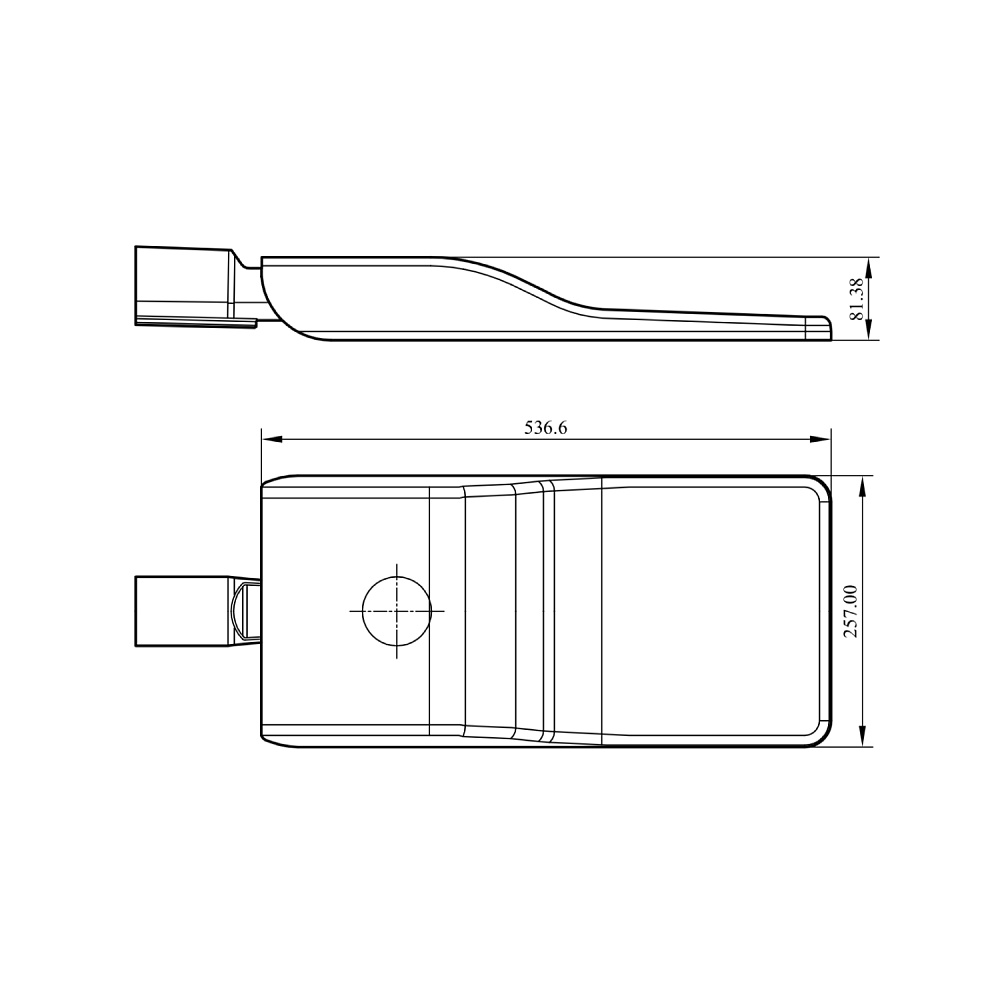

• Dimensions LxWxH:
  537x257x82
• Effective protected area:
  -0.02
• Housing colour:
  RAL 7035
• Housing material:
  Housing: high-pressure, die-cast aluminium powder coated, no plastic parts
• Ingress protection:
  IP66
• Installation options:
  Post top or side entry installation 40-60mm with tilt regulation 0/5/10/15 dgr
• Optical cover:
  Extra clear toughened flat glass
• Windage area:
  no more 0,138sq.m above/below and 0,0437sq.m side position

OPERATION AND MAINTENANCE

• Electrical connection:
  0.4m cable as standard or 5….15m cable as other options on request
• Maintenance:
  Opening with screw
• Maintenance of lumen output:
  100000 hours – L90B10
• Operating temperature range:
  -40…+35 C, typical for exact values
• Application:
  • Urban road and streets
  • Residential roads and paths
  • Pedestrian crossroad

MARKING AND APPROVALS

• CE mark:
  CE marked
• ROHS mark:
  ROHS complaint
