WL320 UGR<19 IP54

PRODUCT INFORMATION

FUNCTIONALITY

• Initial LED luminaire efficacy:
  90-114 Lm/W
• Color Rendering Index (CRI):
  > 80
• Light source:
  LED module with CITIZEN led chips
• Initial Lightoutput:
  1000-2850lm depending on type

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0.92 depends on type
• Electrical isolation class IEC:
  Class II
• Input Frequency:
  50-60 Hz
• Power factor nominal:
  0,95
• Input voltage:
  220 – 240 V
• Power consumption:
  13-18-25W Depending on type

MECHANICAL PARAMETERS

• Ingress protection:
  IP54
• Impact resistance:
  IK05

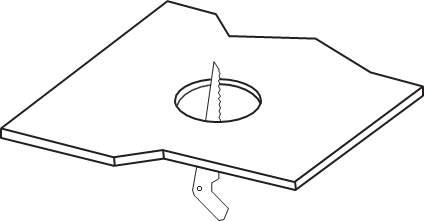

• Installation:
  recessed. Outside diameter 110-190mm
• Body material:
  Die-cast aluminium

OVERTIME PERFORMANCE

• Driver service life time @10% failures:
  50 000 h
• Initial system efficacy:
  90-114 Lm/W depend on type
• Luminous flux system tolerance:
  +/- 5%
• Median useful life of LED source:
  L80B20, 50 000 Hours
• Power consumption tolerance:
  +/- 5%

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  0;+35 C

GENERAL INFORMATION

• Flammability:
  Not fire resistant
• CE mark:
  CE mark
• ROHS mark:
  ROHS mark
• Application:
  • Offices
  • Hotels
  • Retail
