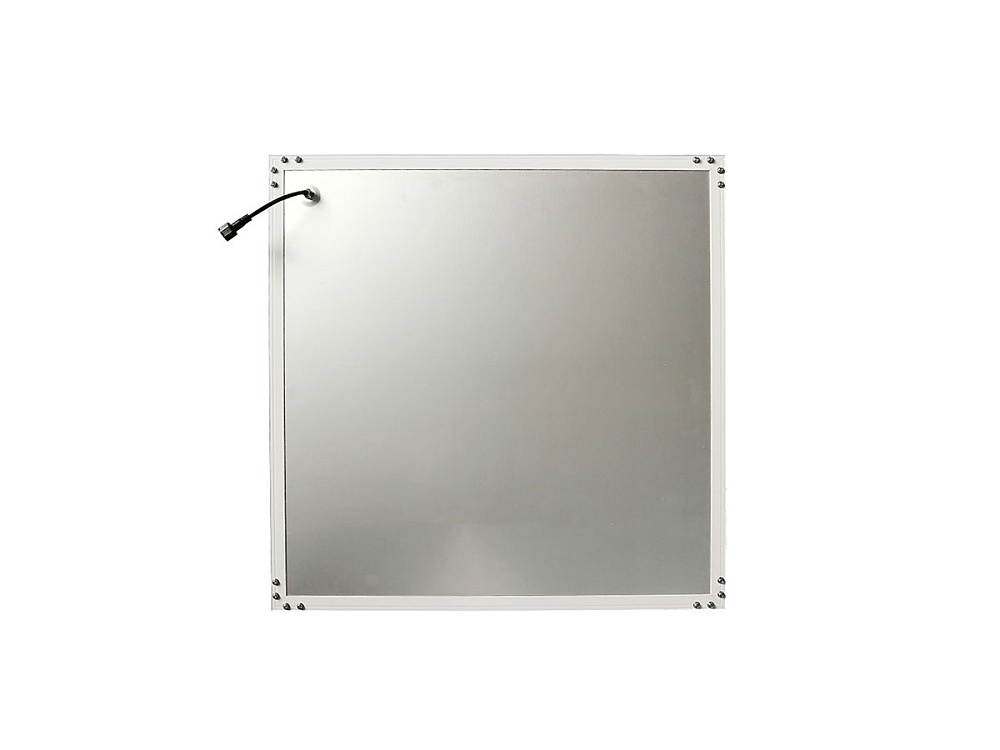

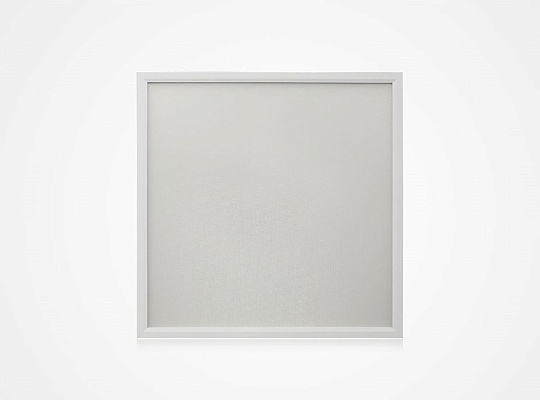

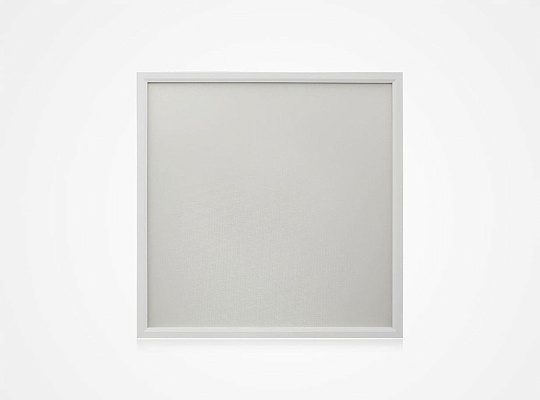

DPL IP WATERPROOF PANEL

PRODUCT INFORMATION

TYPE

• Product type:
  DPL IP

FUNCTIONALITY

• Optical cover:
  Opal polycarbonate diffuser
• Light source:
  LED module
• Ceiling type:
  Exposed T-bar ceiling
• Initial light output
  4000Lm
• Managing:
  Fixed output as standard, DALI optional

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0.92
• Electrical isolation class IEC:
  II
• Input Frequency:
  50-60Hz
• Power factor nominal:
  0,95
• Input voltage:
  220 – 240 V
• Power consumption:
  40W

MECHANICAL PARAMETERS

• Ingress protection:
  IP54 or IP65 depends on type
• Impact resistance:
  IK02
• Installation:
  Individual: lay-in in exposed ceiling grids; suspended
• Net weight piece:
  2,2 kg
• Body material:
  Aluminum profile, steel cover
• Color:
  White

OVERTIME PERFORMANCE

• Driver service life time @10% failures:
  50 000
• Initial system efficacy:
  up to 100 Lm/W
• Luminous flux system tolerance:
  +/- 5%
• Median useful life of LED source:
  M70F50 life > 50 000 hours
• Power consumption tolerance:
  +/- 5%

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  -10°C to +30 °C

GENERAL INFORMATION

• Flammability:
  No fire resistant
• Warranty period:
  5 years
• CE mark:
  CE mark
• ROHS mark:
  ROHS mark
• Application:
  • Clean rooms
  • Healthcare
  • Spaces with high hymidity
