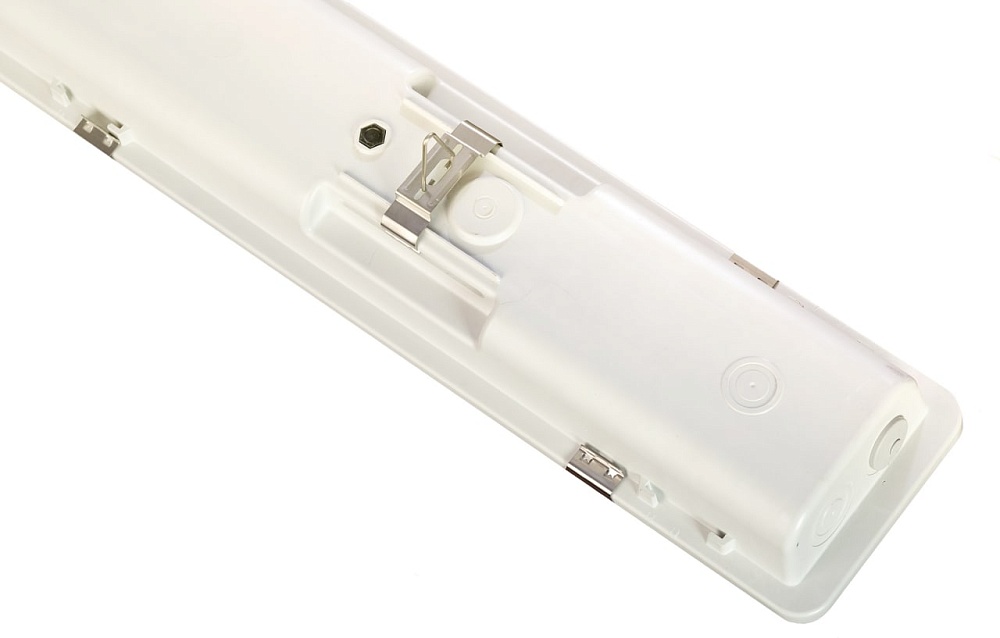

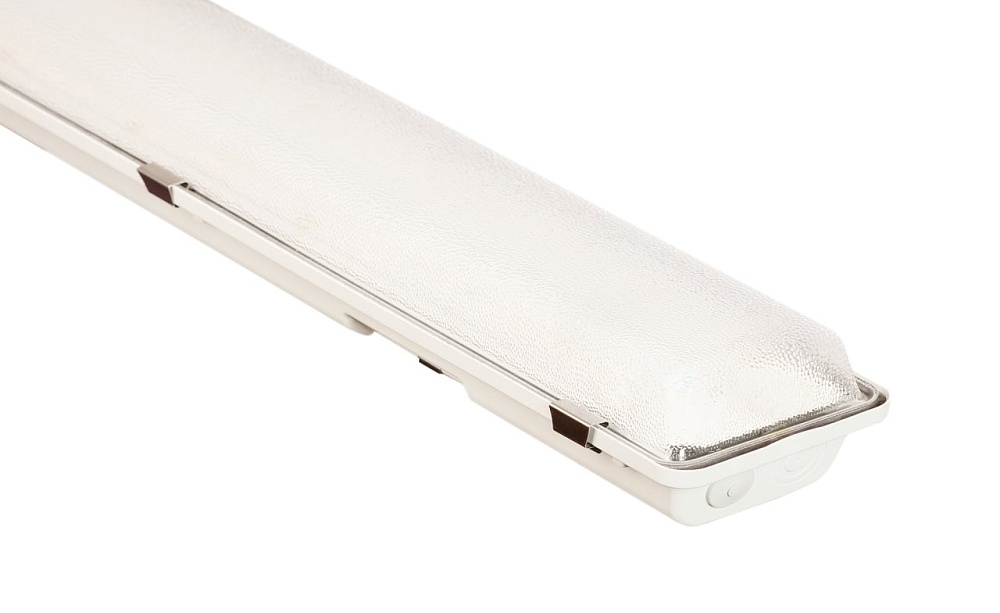

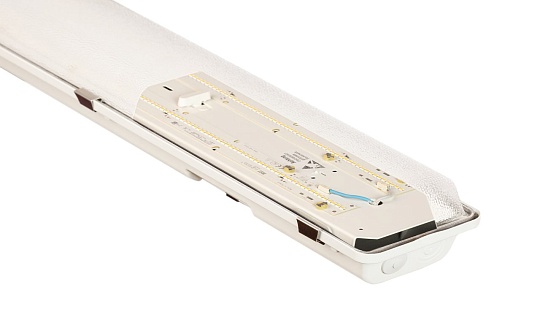

DCW116 High Flux Lowbay

PRODUCT INFORMATION

FUNCTIONALITY

• Initial LED luminaire efficacy:
  16 lm/W depending on type
• Optical cover:
  Injection molded acrylic (PMMA). As option injection molded polycarbonate (PC)
• Color Rendering Index (CRI):
  > 80
• Power supply:
  Industrial driver Philips Xitanium iXt included
• Light source:
  OSRAM LED chips

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0,92
• Electrical isolation class IEC:
  Class I as a standard, Class II on request
• Input Frequency:
  50-60 Hz
• Power factor nominal:
  0,95
• Input voltage:
  220 – 240 V
• Power consumption:
  152 W

MECHANICAL PARAMETERS

• Ingress protection:
  IP65, (IP66, IP67 as option)
• Impact resistance:
  IK05, IK10 as option
• Installation:
  on surface
• Body material:
  Flame retardant glass-fibre reinforced polyester

OVERTIME PERFORMANCE

• Driver service life time @10% failures:
  100 000 hours
• Initial system efficacy:
  163 Lm/W
• Luminous flux system tolerance:
  +/- 4%
• Median useful life of LED source:
  L80B20 - 50000 or 100000 hour
• Power consumption tolerance:
  +/- 3%

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  -30+35 C

GENERAL INFORMATION

• Flammability:
  Not fire resistant
• CE mark:
  CE mark
• ROHS mark:
  ROHS mark
• Application:
  • Parking garages
  • Warehouses
  • General lighting
