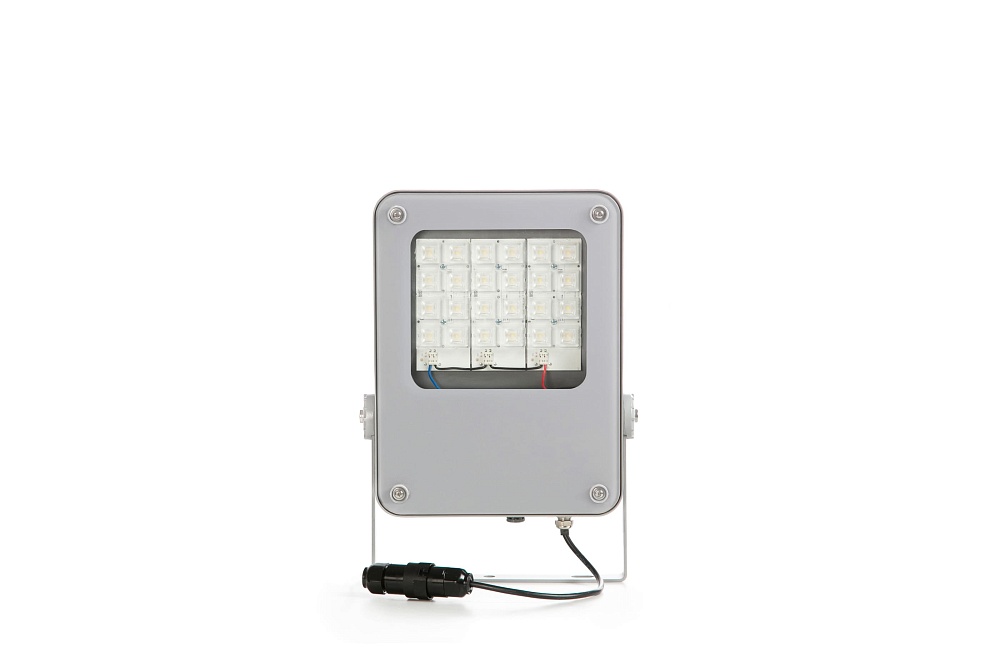

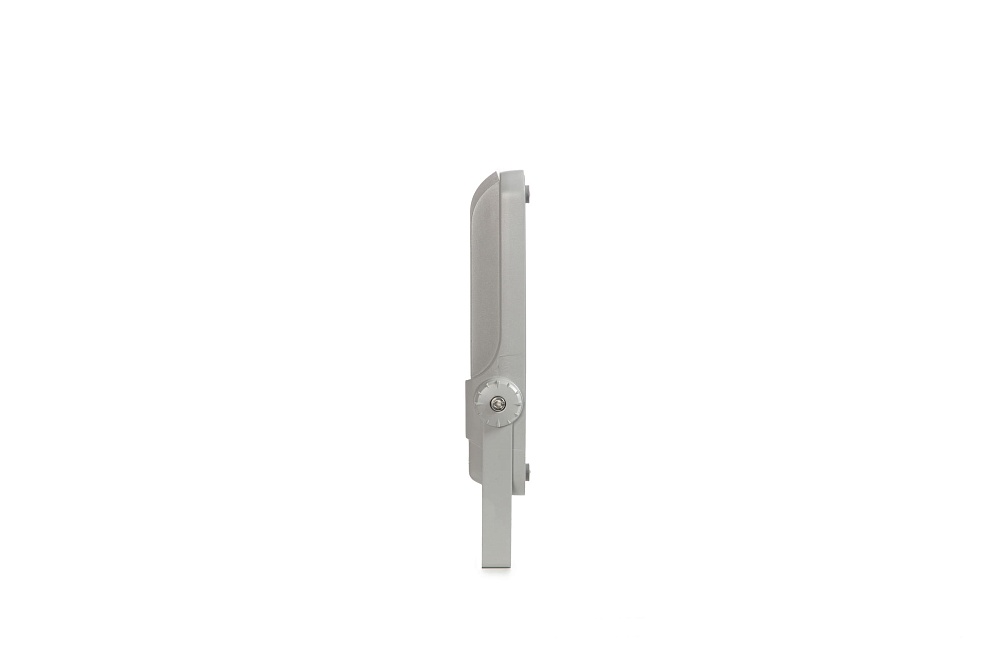

DKF 291 ODIN gen2

PRODUCT INFORMATION

TYPE

• Product type:
  DKF 291

ELECTRICAL PARAMETERS

• Driver failure ratio:
  < 10% at 100 000 hours
• Driver type:
  Built in PHILIPS Xitanium Outdoor driver
• Electrical isolation class IEC:
  Safety class I as a standard, II on request
• Input Frequency:
  50-60 Hz
• LED current ripple %:
  < (4-30) depends on type
• Mains voltage index:
  220-240 V / 50-60 Hz
• Nominal input voltage range:
  202..254 or 198…264, depends on type
• Power factor nominal:
  up to 0.98
• Standard Power range:
  18–35W depending on type
• Surge protection:
  4/6 kV

LIGHTING PERFORMANCE

• CCT:
  1800K, 2800K, 3000K, 4000K, 5700K
• Color rendering index, CRI:
  70, CRI 80 on request
• Initial color shift, SDCM:
  < 5
• Light distribution:
  Asymmetric for areas ASWD, Symmetric RS48, RS33D,20D
• Light source:
  Modules with OSRAM LED chips
• LOR:
  up to 0,86
• Luminaire lumen output range, lm:
  2500–5500 Lm depending on type
• Photobiological safety:
  RG1
• Type of optic:
  Low ageing PMMA lenses

CONSTRUCTION AND MATERIALS

• Dimensions LxWxH:
  335x250x59,7 mm
• Effective protected area:
  At horizontal position 0.052
• Housing colour:
  Grey
• Housing material:
  Housing: high-pressure, die-cast aluminium powder coated, no plastic parts
• Impact resistance:
  IK08
• Ingress protection:
  IP66
• Installation options:
  U-shape mounting bracket fixed with standard bolts and nuts. No need open for electrical connection
• Optical cover:
  Extra clear toughened flat glass
• Windage area:
  no more 0,083sq.m above/below and 0,02sq.m side position

OPERATION AND MAINTENANCE

• Electrical connection:
  0.4m cable as standard
• Maintenance:
  Opening with screw, LED modules are non-replaceable and can be replaced by manufacturer only, no internal cleaning required
• Maintenance of lumen output:
  100 000 hours – L90B10
• Application:
  • Bilboards/advertising lighting
  • Landscape features
  • Security and amenity lighting
  • General lighting

MARKING AND APPROVALS

• CE mark:
  CE marked
• ROHS mark:
  ROHS compliant
